Vertical scissor lift platform manufacturer
Vertical scissor lift platform is used to transport staff and equipment to the designated site, the operation of special vehicles. Vertical scissor lift platform are widely used in post and telecommunications, municipal construction, fire rescue, architectural decoration, aerial photography, shipbuilding, petroleum, chemical industry, aviation and other industries. It has the advantages of flexibility, rapid transfer, wide coverage, easy access to and arrival at the operating site, and quick operation. The Vertical scissor lift platform can be divided into four basic types according to the type of its lifting mechanism: telescopic arm type (straight arm type), folding arm type (curved arm type straight lifting type and mixed type. Here is the folding arm aerial work vehicle.

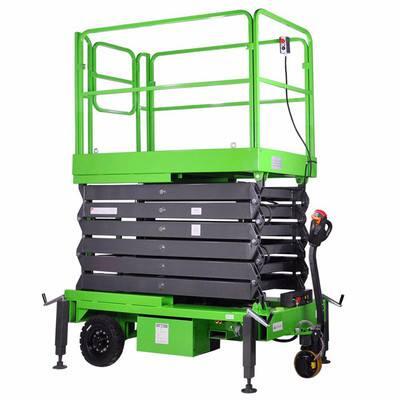

Vertical hydraulic scissor lift best quality
Rated Loading Capacity: 300kg 500kg 1000kg 1500kg 2000kg 660 lbs. 1100 lbs. 2200 lbs. 3300 lbs. 4400 lbs.
Max. Lifting Height: 3m 6m 8m 10m 12m 4m 16m 18m
After-sales Service Provided:Online support, Engineers available to service machinery overseas
Certification:CE ISO
Lift Drive / Actuation:Electric hydraulic
Vertical hydraulic scissor lift platform specification：
Tables
|
Model |
Platform Size (m) |
Capacity (kg) |
Platform height (m) |
Overall Size (mm) |
Weight(kg) |
|
TS0.5-6 |
2100*830 |
500 |
6 |
2250*950*1200 |
880 |
|
TS0.5-7 |
2100*830 |
500 |
7 |
2250*950*1280 |
970 |
|
TS0.5-8 |
2100*930 |
500 |
8 |
2250*1060*1380 |
1050 |
|
TS0.5-9 |
2100*930 |
500 |
9 |
2250*1060*1500 |
1165 |
|
TS0.5-10 |
2100*1230 |
500 |
10 |
2250*1350*1530 |
1360 |
|
TS0.5-11 |
2100*1230 |
500 |
11 |
2250*1350*1650 |
1400 |
|
TS0.5-12 |
2550*1530 |
500 |
12 |
2796*1670*1750 |
2260 |
|
TS0.5-14 |
2812*1530 |
500 |
14 |
3067*1730*1810 |
2486 |
|
TS0.3-16 |
2812*1600 |
300 |
16 |
3067*1810*2080 |
3063 |
|
TS0.3-18 |
3070*1600 |
300 |
18 |
3321*1810*2080 |
3900 |
|
TS1.0-4 |
2100*1200 |
1000 |
4 |
2250*1350*1180 |
1250 |
|
TS1.0-6 |
2100*1200 |
1000 |
6 |
2250*1350*1300 |
1400 |
|
TS1.0-8 |
2100*1200 |
1000 |
8 |
2250*1350*1420 |
1585 |
|
TS1.0-10 |
2100*1200 |
1000 |
10 |
2250*1350*1530 |
1700 |
|
TS1.0-12 |
2550*1530 |
1000 |
12 |
2796*1670*1750 |
2560 |
|
TS1.0-14 |
2812*1600 |
1000 |
14 |
3067*1810*1900 |
3230 |
|
TS1.5-6 |
2100*1530 |
1500 |
6 |
2250*1750*1530 |
1780 |
|
TS1.5-8 |
2100*1530 |
1500 |
8 |
2250*1750*1690 |
2070 |
|
TS1.5-10 |
2100*1530 |
1500 |
10 |
2250*1750*1850 |
2250 |
|
TS1.5-12 |
2550*1530 |
1500 |
12 |
2796*1762*1850 |
2900 |
|
TS1.5-14 |
2816*1600 |
1500 |
14 |
3045*1852*1960 |
3400 |
|
TS0.2-6 |
2100*1530 |
2000 |
6 |
2250*1750*1530 |
1780 |
|
TS0.2-8 |
2100*1530 |
2000 |
8 |
2250*1750*1690 |
2070 |
|
TS0.2-10 |
2100*1530 |
2000 |
10 |
2250*1750*1850 |
2250 |
|
TS0.2-12 |
2550*1600 |
2000 |
12 |
2796*1852*1954 |
3200 |
|
TS0.2-14 |
2816*1600 |
2000 |
14 |
3067*1852*2230 |
3900 |

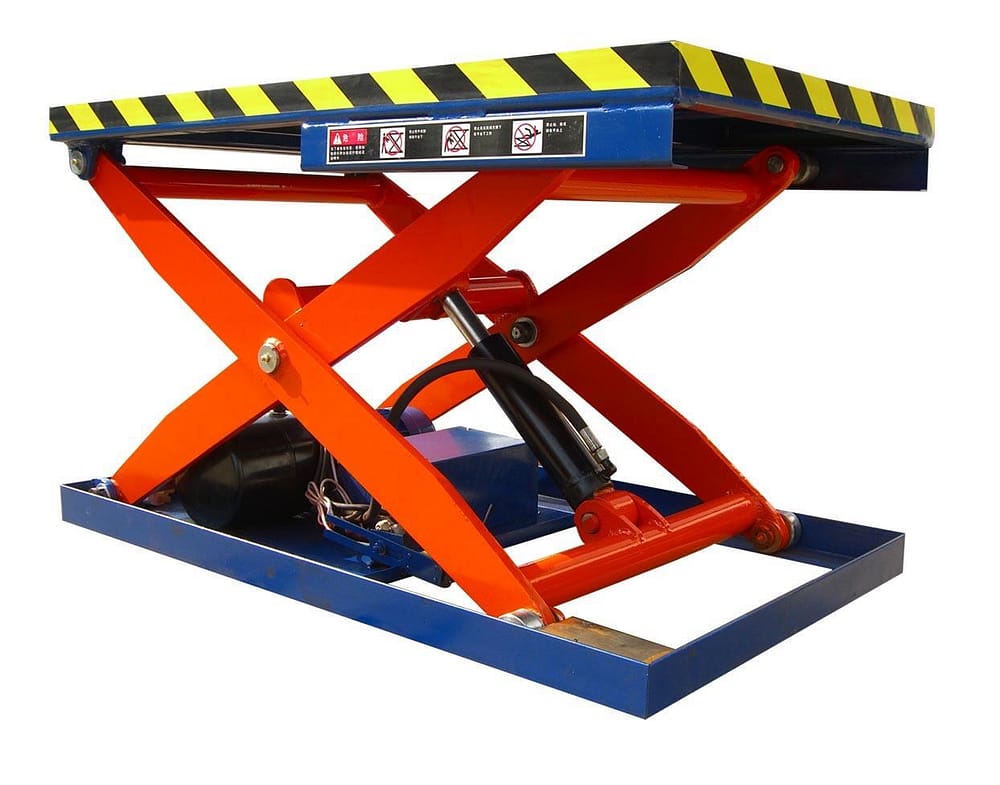

Vertical stationary scissor lift platform for sale
Rated load: 500kg-40ton
Maximum lifting height: 1m-6m
Voltage:110v 220v 240v 380v Optional
Certification:CE ISO9001
Lift Drive / Actuation:Electric Motor
Vertical stationary scissor lift platform Product information:
Vertical stationary scissor lift platform is a fixed transport equipment to lift goods from a certain height to another height. Because of its lifting heavy bulky object, mainly used in the production line, the goods in the difference in height between the conveying, material online referrals, parts and components, such as lifting operation, also can be used for cargo handling, large lifting equipment and other occasions. Vertical stationary scissor lift platform according to different work requirements and the use of the environment, can configure different workbench form, the form of power, control, and other additional accessories
Vertical stationary scissor lift platform Specifications：
Tables
|
Model |
Capacity(KG) |
Vertical travel(MM) |
Min. Height(MM) |
Platform size(MM) |
Lip size(MM) |
Motor power(KW) |
|
SJG1.0-1.6 |
1000 |
1600 |
300 |
2500*1500 |
300 |
1.5 |
|
SJG1.5-1.6 |
1500 |
1600 |
360 |
2500*1500 |
300 |
2.2 |
|
SJG2.0-1.6 |
2000 |
1600 |
400 |
2500*1600 |
300 |
2.2 |
|
SJG3.0-1.6 |
3000 |
1600 |
400 |
2600*1800 |
300 |
3 |
|
SJG5.0-1.6 |
5000 |
1600 |
450 |
2600*1800 |
300 |
4 |
|
SJG6.0-1.6 |
6000 |
1600 |
540 |
2800*2000 |
300 |
5.5 |
|
SJG9.0-1.6 |
9000 |
1600 |
600 |
3000*1800 |
300 |
5.5 |

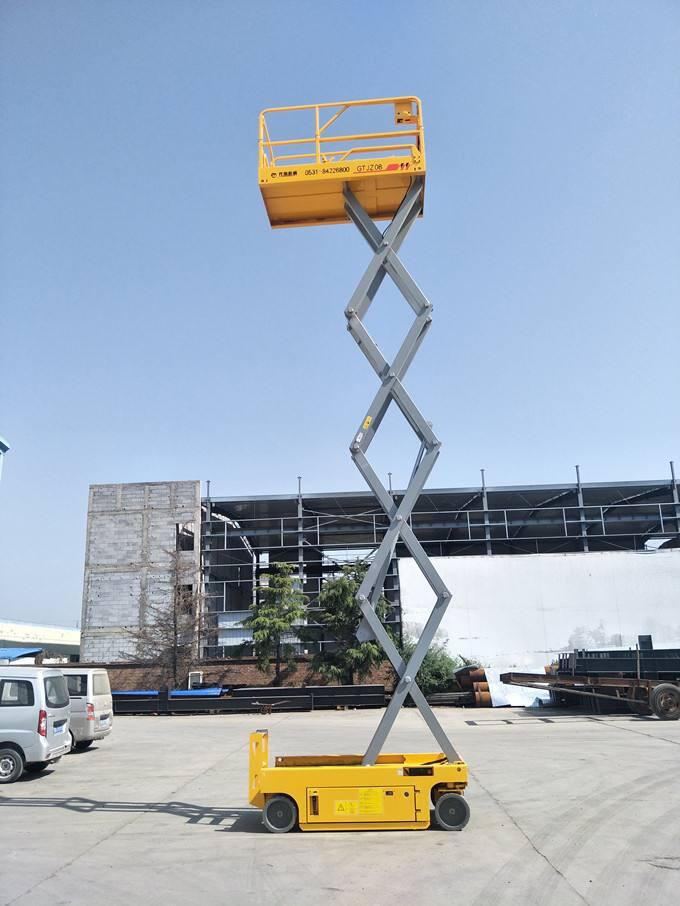

Electric walk Vertical scissor lift platform：
Rated Loading Capacity: 240-480kg
Max. Lifting Height: 14m
Lift Drive / Actuation: Hydraulic battery
Lifting speed: 3-6m/min
Material: High-duty Steel Structure
Electric walk Vertical scissor lift platform consists of two parts: upper and lower parts. The lower assembly is the driving part, namely the chassis of the car, and the upper assembly is the dedicated part, namely the high-altitude operation facilities. In addition to the chassis part of the aerial work vehicle, in order to achieve the function of aerial work, there are power transmission device, working device, safety device and hydraulic system. Its working devices include supporting leg mechanism, lifting mechanism, rotary mechanism, working platform and leveling mechanism.
Technical parameter for Electric walk Vertical scissor lift platform:
Tables
|
Product Specifications |
GTJZ 06 |
GTJZ 08 |
GTJZ 10 |
GTJZ12 |
|
working height |
7.8m |
10m |
12m |
13.8m |
|
platform height |
5.8m |
8m |
10.0m |
12m |
|
platform height stowed |
1.07m |
1.23m |
1.37m |
1.49m |
|
platform length |
1.67m |
2.27m |
2.27m |
2.27m |
|
platform extension length |
0.9m |
0.9m |
0.9m |
0.9m |
|
platform width |
0.76m |
0.81m |
1.17m |
1.17m |
|
Overall Height |
2.18m |
2.34m |
2.48m |
2.59m |
|
Overall length |
1.86m |
2.42m |
2.42m |
2.42m |
|
Overall Width |
0.76m |
0.81m |
1.17m |
1.17m |
|
Wheelbase |
1.31m |
1.87m |
1.87m |
1.87m |
|
Ground Clearance |
0.1m |
0.1m |
0.1m |
0.1m |
|
Lift capacity |
230kg |
230kg |
320kg |
320kg |
|
Lift Capacity-Extension Deck |
113kg |
113kg |
113kg |
113kg |
|
Lift-Up |
27s |
37s |
45s |
50s |
|
Lift-Down |
22s |
32s |
35s |
38s |
|
Weight |
1415kg |
2250kg |
2440kg |
2860kg |
|
Drive Speed(Platform Elevated) |
0-5km/h |
0-3.5km/h |
0-3.5km/h |
0-3.5km/h |
|
Drive Speed(Platform Lowered) |
0-0.8km/h |
0-0.8km/h |
0-0.8km/h |
0-0.8km/h |
|
Turning Radius-outside |
0 |
0 |
0 |
0 |
|
Turning Radius-inside |
1.64m |
2.10m |
2.14m |
2.14m |
|
Grade ability |
30% |
25% |
25% |
25% |
|
Maximum Tilt |
3° |
3° |
3° |
3° |
|
Non-marking solid tires |
15*5 |
15*5 |
15*5 |
15*5 |
|
Battery |
6v*4/225Ah |
6v*4/225Ah |
6v*4/225Ah |
6v*4/225Ah |
|
Charger |
30A automatic |
30A automatic |
30A automatic |
30A automatic |
Electric walk Vertical scissor lift platform parts show:
