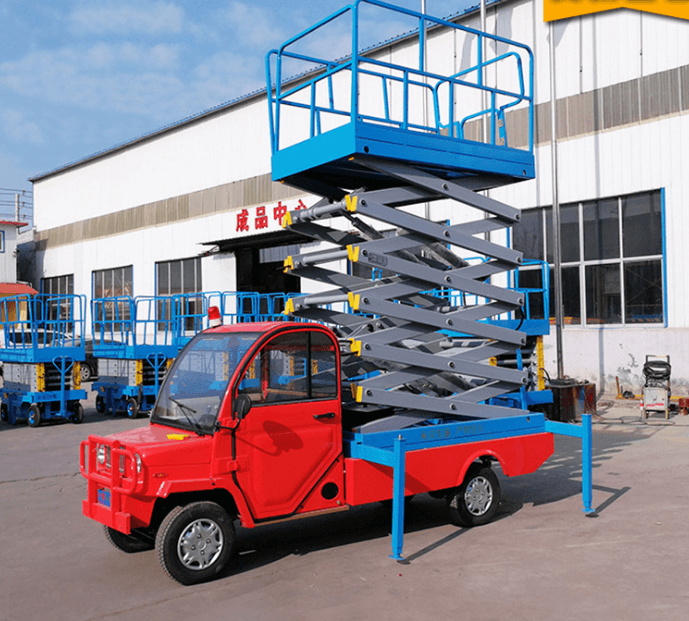

Truck mounted scissor lift platform：
Truck mounted scissor lift platform is the collection four wheels movement and two wheels traction type in a body, USES the automobile chassis to do the platform bottom frame, USES the automobile to start to do the power, both may drive the elevator. The vehicle scissor fork lift takes the minivan (automobile) or the battery car as the carrier, the movement is nimble quickly, the operation is simple, the operation scope is wide. Truck mounted scissor lift platform USES the scissor lift structure, the scissor fork structure USES the high quality rectangular manganese steel control, the overall strength is high, the load is big, the rise and fall stability is good, widely used in the city construction, the oil field, the transportation, the municipal government, the outdoor advertisement and so on profession.
Truck mounted scissor lift parameter：
Load Capacity: 300Kg-1000kg
Lifting Height: 6-12m
Lift Drive / Actuation: Electric Motor
Warranty: One year
Truck mounted scissor lift platform detailed parameters:
Tables
|
Model |
YLH0.3-6C |
YLH0.5-6C |
YLH0.5-7.2C |
YLH0.3-9C |
YLH0.5-9C |
YLH1-9C |
|
|
Capacity |
kg |
300 |
500 |
500 |
300 |
500 |
1000 |
|
Max. height |
mm |
6000 |
6000 |
7200 |
9000 |
9000 |
9000 |
|
Min. height |
mm |
950 |
950 |
1350 |
1500 |
1600 |
1600 |
|
Platform size |
mm |
1780*840 |
1780*840 |
2000*1000 |
2000*1000 |
2000*1000 |
2100*1200 |
|
Overall size |
kg |
3000*1100*1100 |
3000*1100*1100 |
3500*1350*1550 |
3500*1350*1700 |
3500*1350*1850 |
3500*1350*1850 |
|
Lifting time |
s |
35 |
38 |
60 |
70 |
73 |
78 |
|
Voltage |
V |
24 |
24 |
40 |
40 |
40 |
40 |
|
Motor power |
kw |
1.5 |
1.5 |
1.5 |
1.5 |
1.5 |
3 |
|
Net weight |
kg |
1450 |
1450 |
2700 |
2800 |
2900 |
3100 |
FAQ
Q1: How long is the Warranty for DFLIFT product?
A1: DFLIFT provides 24 months or 3000 hours for the whole machine from on board time.
Q2: How about the delivery time?
A2: Usually DFLIFT producing time is 7-15 days after we receive the advanced payment. For some standard products, we may have stock and could delivery immediately.
Q3: Can DFLIFT provide customized products? OEM products or ODM products?
A3: Yes, DFLIFT can provide customized products per your request, both OEM and ODM are acceptable. We do a lots of non-standard products, welcome your special request.
Q4: Could we request our own color for the products?
A4: Yes, of course, you just need to offer us the RAL code.
