Self-propelled scissor lift platform manufacturer:
DFLIFT Self-propelled scissor lift platform are electric drive. With main components from world class brands, our electric scissor lifts have advantages such as strong capacity, convenient operation, safety, reliability and good quality. Our electric Self-propelled scissor lift platform are energy saving and environmentally-friendly with less noise and no emission. With the maximum working height from 6m to 14m, it is suitable for indoor and outdoor working environment.
Rated Loading Capacity: 320kg 480kg
Min. Lifting Height: 800mm
Max. Lifting Height：16000mm
Main Material:High duty steel
After-sales Service Provided:Field installation, commissioning and training
Platform:Anti-skid Checkered Plate
Voltage:110V,220V,380V, customized
Self-propelled scissor lift platform parameter table:
Tables Model SPS0.3-6 SPS0.3-8 SPS0.3-10 SPS0.3-12 Platform height 6m 8m 10m 12m Work height 8m 10m 12m 14m Load capacity 300kg 300kg 300kg 300kg Dimension 2.48*0.81*1.87 2.48*0.81*1.89 2.48*1.5*1.92 2.48*1.15*2.04 Platform size 2.27*0.81m 2.27*0.81m 2.27*1.12m 2.27*1.12m Extension deck 0.90m 0.90m 0.90m 0.90m Drive motor 24V/1.5KW 24V/1.5KW 24V/1.5KW 24V/1.5KW Lift motor 24V/3.3KW 24V/3.3KW 24V/4.5KW 24V/4.5KW Travel speed 4.0km/h Wheel Φ300*100mm Weight 2125kg 2180kg 2965kg 2910kg
Self-propelled scissor lift platform featur：
1. Convenient and quiet
The self-propelled platform lift takes storage battery as the power source and doesn't need human traction or external power source, so it's very convenient. It makes low noise and no emission when working, so it can be used both indoors and outdoors, such as workshop, warehouse, hotel, outdoor road etc.
2. Easy understanding control box
Each control button on the platform has the corresponding instruction mark; users can understand how to operate easily
3. Solid rubber wheels
The small solid rubber wheels moves smoothly without any damage to the floor.
4. Larger working space
The platform can extend on one side, which can enlarge the working space.
5. Foldable guardrails
The guardrails of platform are foldable and can reduce the height of the whole machine, which facilitates the transportation and storage.
6. Multiple choice as needed
We have different load capacity and lifting height to satisfy your needs.
DFLIFT Luxury Hydraulic Self-propelled lifts (Main parts imported)
Main Parts Origin
Tables Name Origin Brand DC motor Korea Hydra Power(5.0ml/r) Hydraulic pump station Korea Hydra Power Block assemble (include solenoid valve) Italy SANT BK Brake USA White RE Motor USA White(375ml/r) Brake release pump USA White Battery USA Trojan

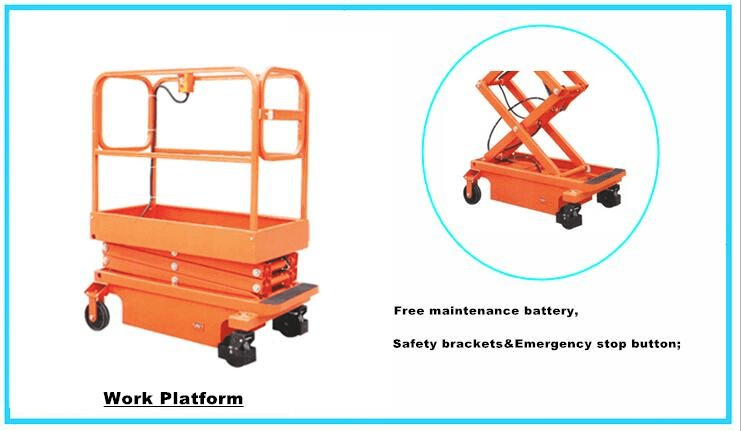

Mini scissor lift platform for sale
As the ideal model for flexible operation in narrow space, Mini scissor lift platform feature nice appearances, compact structures, stability, reliability, strong power performance and field adaptability, flexible operation, excellent quality and safety.
DFLIFT Mini scissor lift platform cover 8m to 16m work height, hydraulic powered, electric motor drive, which have long run time, and high productivity. The energy•efficient direct electric drive boosts your productivity with industry•leading duty cycles. Mini scissor lift platform is safe and reliable,so it is the optimal product for aerial lifting operation, such as aerial cleaning, repairing, and maintenance.
Rated Loading Capacity: 230kg 300kg
Max. Lifting Height：5.8m 19 ft.
Platform:Anti-skid Checkered Plate
Voltage:110V,220V,380V, customized
Details:
1. Electric power lifting;
2. Free maintenance battery, Safety brackets & Emergency stop button;
3. Three scissors design;
DFLIFT Mini scissor lift platform are energy-saving and environmentally-friendly with less noise and no emission. With proportional controls for lift and drive functions, the DFLIFT Mini scissor lift platform boasts the versatility to work in indoor and outdoor construction, maintenance and installation applications with firm, level surfaces.
Why choose us DFLIFT?
1. Import&Export: as a leading with more experience of construction machinery and its spare parts, we provide full support to our customers includes competitive price, after-sale services, fast delivery and etc.
2. Lead time: we have ten years history experience of products and spare parts imported&exported. On leading time we have big advantages as a manufacuturer, usually in 2-4 days after order confirmation.
3. Package: the goods are packed in strong fumigated wooden cases. They could also packed according to customers' request.
4. Payments: we usually accept T/T, L/C or Western Union, other terms also could be negotiated, such as Alibaba trade assurance, will guarantee buyer's interest.
5. Reassurance: we are Alibaba golden supplier, our trade assurance limit is so more. If there is any quality problem, Alibaba will refund you.
