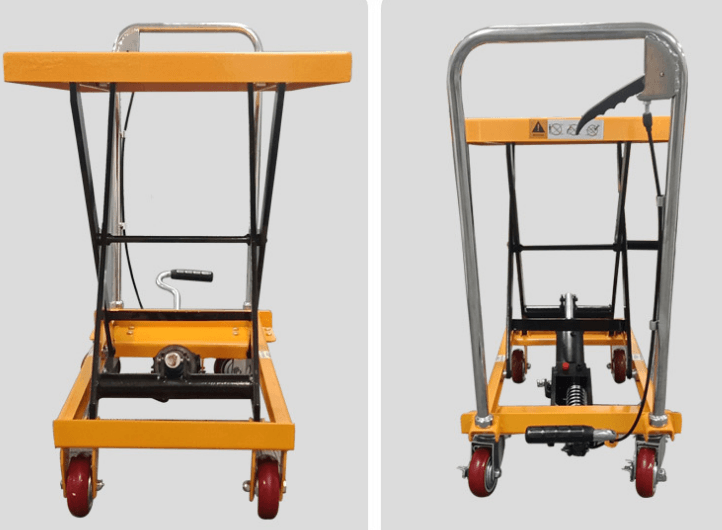

Scissor lift trolley platform：
Scissor lift trolley platform is a multi-functional lifting and unloading machinery equipment, electric lifting platform lifting system, is driven by hydraulic pressure. The Scissor lift trolley platform structure makes the lifting platform have higher stability, wide working platform and higher bearing capacity, making the working range of high altitude larger and suitable for many people to work at the same time. Scissor lift trolley platform makes working at high altitude more efficient and safe. At present, the mainstream of the market is hydraulic driven lifting, because of the small size, scissor lift table trolley easy to move widely used in logistics transportation, warehouse management, library, supermarket, and ordinary small equipment manufacturing.
Capacity: 150-3000KG
Lift Drive / Actuation: Hydraulic
Min. Lifting Height: 350mm
Hydraulic: Foot-type hydraulic
Product Type: Mini scissor lift table
Scissor lift trolley platform specification:
Tables
|
Model |
HW-150 |
HW-300 |
HW-500 |
HW-750 |
HW-300D |
|
Name |
Hydraulic Scissor lift table |
Double hydraulic Scissor lift table |
|||
|
load-bearing(kg) |
150 |
300 |
500 |
750 |
300 |
|
Overall dimensions(mm) |
900*450*900 |
1050*520*900 |
1120*520*900 |
1120*520*900 |
1050*520*900 |
|
Platform size(mm) |
708*450 |
820*520 |
820*520 |
820*520 |
820*520 |
|
Min height(mm) |
225 |
240 |
260 |
280 |
360 |
|
Max height(mm) |
700 |
750 |
780 |
780 |
1220 |
|
Wheel size(mm) |
Φ100*w30 |
||||
|
package size(mm) |
810*490*250 |
920*590*250 |
920*560*300 |
920*590*300 |
920*570*380 |
|
Weight(kg) |
49 |
66 |
75 |
75 |
103 |
Electric scissor lift trolley platform：
1. Electric scissor lift trolley has been tested and debugged before leaving the factory, and all the technical indicators have reached the design requirements. When using, only the power is connected, and the hydraulic and electrical systems do not need to be adjusted.
2. Before using the platform, check the hydraulic and electrical systems, and do not use the platform until there is no leakage or bare leakage.
3. When the electric scissor lift trolley is in use, the four supporting legs should be firmly supported on the solid ground (subject to the walking wheel leaving the ground) and sleepers can be used when necessary.
4. Electric scissor lift trolley can only be loaded after it is empty for 1-3 times.
5. The center of gravity of the load shall be at the center of the workbench as far as possible.
6. The movable doors at both ends of the protective railings should be locked firmly before operation.
Rated Loading Capacity：150kg-2000kg
Max. Lifting Height：700-2000mm
Lifting mechanism: Electric motor
Lift Drive / Actuation: Hydraulic
Specification of Scissor Lift Platform Trolley:
Tables
|
Model |
DP30 |
DP50 |
DP35 |
|
Loading capacity (kg) |
300 |
500 |
350 |
|
Min. lifting height (mm) |
280 |
280 |
280 |
|
Max. lifting height (mm) |
900 |
900 |
1300 |
|
Table size (mm) |
950*500*50 |
950*500*50 |
950*500*50 |
|
Wheel size (mm) |
125 |
125 |
125 |
|
Voltage (V) |
12 |
12 |
12 |
|
Power (kw) |
800 |
800 |
800 |
|
Battery (ah) |
65 |
65 |
65 |
|
Input voltage (V) |
220/110 |
220/110 |
220/110 |
|
Net weight (kg) |
110 |
140 |
120 |
Roller table scissor lift trolley platform:
Capacity: 150-3000KG
Lift Drive / Actuation: Hydraulic
MAX. Lifting Height: 700-2000mm
Hydraulic: Foot-type hydraulic
Product Type: Mini scissor lift table
Roller table scissor lift trolley platform is hand-driven, electric lifting, bearing 0.3-1 ton, maximum lifting weight up to 1500kg. Platform surface installed with a number of rollers, easy to move the goods, reduce the human power to move the force, through the ball table so that the work of time-saving, labor-saving, installed safety valve, fully sealed cylinder, electric control of the hydraulic system rise and fall, easy to operate. Roller table scissor lift trolley platform with nylon guide wheel to the wheel to save the operator's physical strength, and can protect the load wheel and pallet load wheel. Electric platform car series USES dc motor hydraulic station as power source, platform lifting with button switch control, easy and simple. By lifting the platform to the appropriate height, this series of products can reduce the injury rate of workers caused by handling and bending, and greatly reduce the labor intensity of workers. Productivity is thus improved. In addition to direct current, customers can also choose ac motor or pedal oil source as power source.
Why choose DFLIFT Scissor lift platform?
The foundation of all the core design and business philosophy of DFLIFT is to provide users with safe products.
DFLIFT gives consideration to users' practical requirements, safety requirements, environmental protection and low-carbon requirements;
The steady development of DFLIFT and the reputation of users also stem from our security commitment;
DFLIFT is committed to providing you with a more complete solution.
