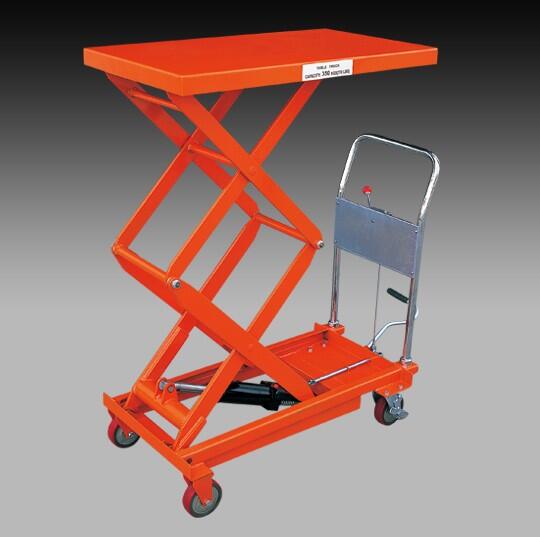

Scissor lift platform
Mobile Scissor lift platform, is a small lifting machinery, mainly used for small range of lifting, article extraction, put, also used for carrying small valuables. The product appearance is generous and beautiful, the structure is firm, stable and safe and reliable, the intrinsic performance and the service life has reached the same equipment advanced level. At present, the mainstream of the market is hydraulic driven lifting, because of the small size, easy to move widely used in logistics transportation, warehouse management, library, supermarket, and ordinary small equipment manufacturing.
Capacity: 150~2000kg
Lifting height: 210-1700mm
Driving mode: Manual Type
Frame material: Q235b
Lifting methods: Foot pedal to lift up, electric lift
Travel methods: manual push
Table: can add the roller for rolling
Scissor lift platform Parameter
Tables
|
Model |
Platform Size |
Lifting Range |
Lifting Capacity |
|
L*W*H |
|||
|
PT150 |
700*450*35 |
210-720mm |
150kg |
|
PT300 |
810*500*50 |
280-900mm |
300kg |
|
PT500 |
810*500*50 |
280-900mm |
500kg |
|
PT1000 |
1000*510*55 |
415-1000mm |
1000kg |
|
PTS150 |
700*450*35 |
305-1260mm |
150kg |
|
PTS350 |
905*500*50 |
350-1300mm |
350kg |
|
PTS500 |
905*500*50 |
360-1500mm |
500kg |
|
PTS800 |
1200*610*58 |
450-1500mm |
800kg |
|
PTS1000 |
1200*610*80 |
500-1700mm |
1000kg |
|
PTS350 |
900*700*50 |
350-1580mm |
350kg |
|
PTD500 |
1600*610*80 |
280-900mm |
500kg |
|
PTD1000 |
1200*610*80 |
380-1000mm |
1000kg |
|
PTD1500 |
1200*610*80 |
380-1000mm |
1500kg |
|
PTD2000 |
1200*610*80 |
380-1000mm |
2000kg |

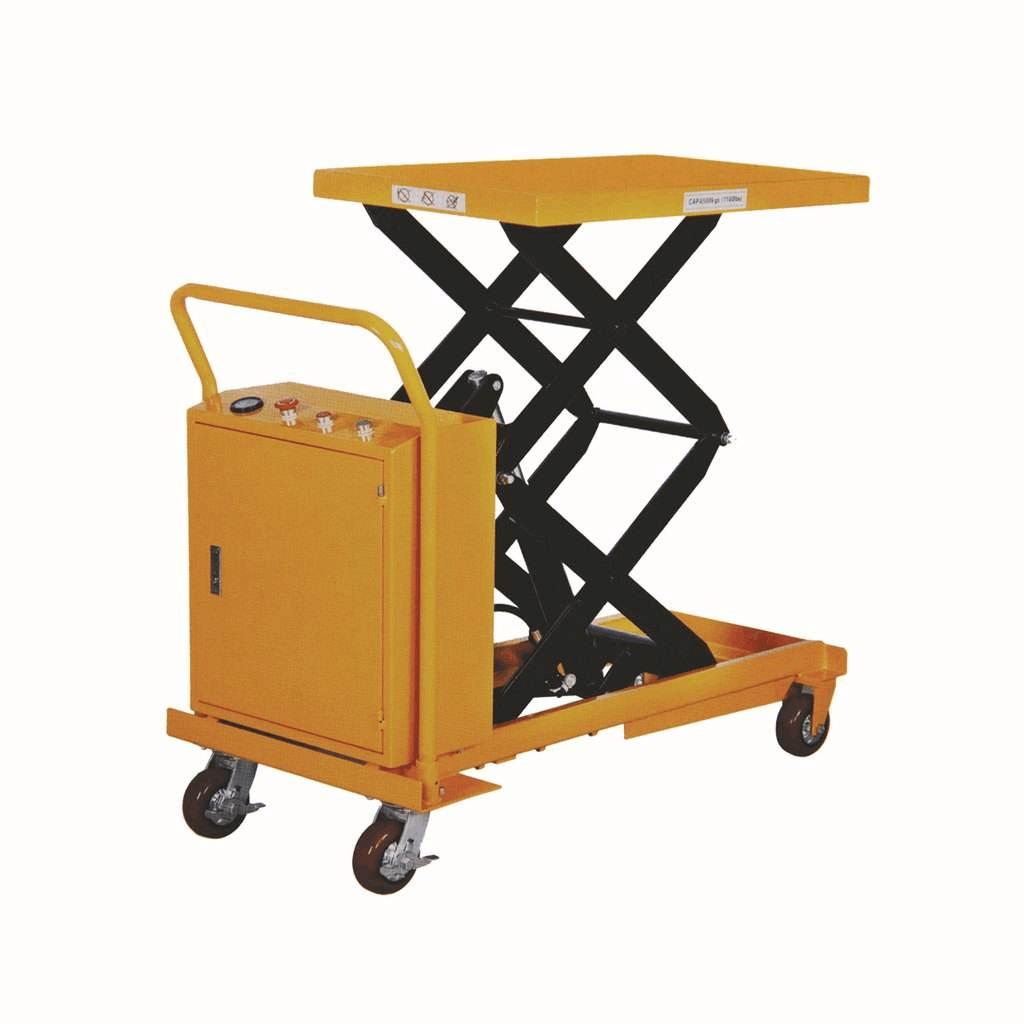

Electric scissor lift platform
Electric scissor lift platform it is more convenient to lift the battery
Capacity: 150/200kg/300kg/500kg/1 ton /2ton hydraulic scissor lift table
Lifting height: 210-1700mm
Driving mode: Manual Type
Frame material: Q235b
Walking hand push, lifting electric

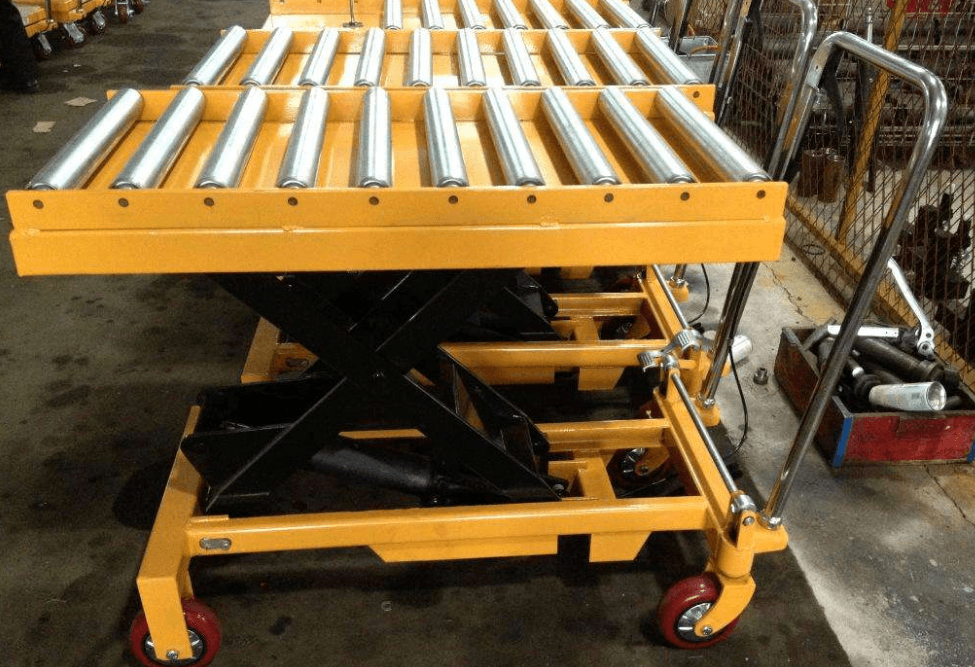

Scissor lift platform roller top for sale
Lift capacity:150kg-2 ton
Lift height:500-1300
Mode of operation: manual / electric
Hand-pushed hydraulic scissor lift platform roller offered find high suitability for lifting heavy loads to higher heights and can achieve maximum lift height of 12 meters. We make these available in operational capacity range from 200kg to 30000kgs. and in superior finish standards that make these easily handle movement of loads to different levels. Offering easy loading and unloading interface, Hand-pushed hydraulic scissor lift platform roller can also be custom built in different sizes & capacities as demanded by the customers.
Scissor lift platform roller parameter:
Tables
|
Type |
Capacity（kg） |
Min height（mm） |
Max height（mm） |
Platform size（mm） |
Total length（mm） |
Handle length（mm） |
Weight （kg） |
Overall size（mm） |
|
TF15 |
150 |
210 |
730 |
700*450*35 |
880 |
890 |
43 |
820*460*260 |
|
TF30 |
300 |
290 |
900 |
820*500*35 |
1070 |
970 |
75 |
1000*520*300 |
|
TF50 |
500 |
390 |
900 |
820*500*35 |
1070 |
970 |
85 |
1000*520*400 |
|
TF35 |
350 |
405 |
1300 |
905*512*55 |
1170 |
970 |
103 |
1000*520*350 |
|
TF75 |
750 |
360 |
1000 |
1000*512*55 |
1170 |
1020 |
109 |
1270*530*380 |
|
TF100 |
1000 |
410 |
1000 |
1000*512*55 |
1350 |
970 |
116 |
1160*600*420 |
|
TF50MB |
500 |
360 |
1280 |
750*550 |
1030 |
1000 |
109 |
1780*820*300 |
Scissor lift platform roller Features:
• Soft-lowering down valve on foot pump for smooth, safe transitions of cargo
• Hard Chromed Roller Top permits easy movement of cargo for loading/unloading
• Portable ergonomic elevating cart minimizes workers bending and lifting
• Material can be easily loaded onto cart from table, lowered to safe transporting height
• Carts roll smoothly and quietly on low-friction polyurethane and poly-on-steel wheels
• 2 swivel casters with brakes and two 2 rigid casters for excellent mobility
• Rugged steel construction delivers durability for long lasting use
• Partially stainless steel carts are available
• Custom size and specs available

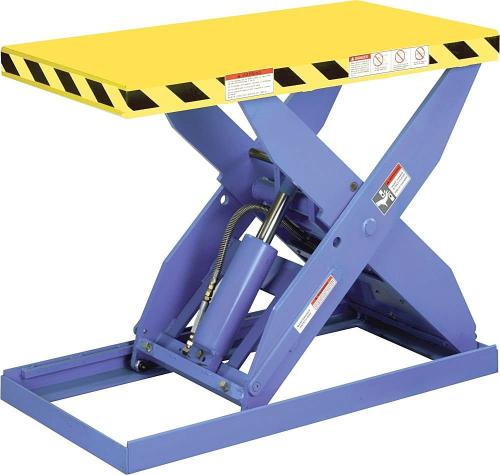

Stationary/fixed scissor lift platform
The Stationary/fixed scissor lift platform is a kind of cargo lifting equipment with good lifting stability and wide application scope. Material on-line and off-line; Adjust the height of workpiece during assembly. High feeder feeding; Lifting of components during assembly of large equipment; Large machine tool feeding and discharging; Storage and handling places and forklifts and other vehicles supporting the rapid loading and unloading of goods. Stationary/fixed scissor lift platform according to the use requirements, can be configured with other additional devices, and any number of or combination, can achieve better use effect.
Rated Loading Capacity: 300-30ton
Maximum lifting height:6m
Certification:CE ISO
Control method:Control panel or control box
Lift Drive / Actuation:Electric Motor
Stationary/fixed scissor lift platform parameters and price list:
Tables
|
Model |
Rated capacity（kg） |
Raise height (m) |
Low height (m) |
Table size (m) L*W |
Power supply |
Motor power (kw) |
FOB (USD) Shanghai |
|
SJG-1T-0.5M |
1000 |
0.5 |
0.2 |
1.2*0.7 |
380 |
1.5 |
1905 |
|
SJG-1.5T-0.95M |
1500 |
0.95 |
0.25 |
1.5*0.75 |
380 |
1.5 |
2064 |
|
SJG-2T-1.15M |
2000 |
1.15 |
0.25 |
1.7*0.9 |
380 |
2.2 |
2302 |
|
SJG-2.5T-0.75M |
2500 |
0.75 |
0.25 |
1.4*1 |
380 |
2.2 |
2540 |
|
SJG-3T-0.8M |
3000 |
0.8 |
0.3 |
1.5*1 |
380 |
3 |
2698 |
|
SJG-3.5T-0.88M |
3500 |
0.88 |
0.3 |
1.6*1 |
380 |
3 |
2857 |
|
SJG-4T-1M |
4000 |
1 |
0.32 |
1.8*1 |
380 |
3 |
3016 |
|
SJG-4.5T-1.2M |
4500 |
1.2 |
0.32 |
2*1 |
380 |
4 |
3333 |
|
SJG-8T-1M |
8000 |
1 |
0.4 |
2.6*1.8 |
380 |
5.5 |
5079 |
|
SJG-0.5T-2.8M |
500 |
2.8 |
0.4 |
2*1 |
380 |
1.5 |
3175 |
|
SJG-1T-1.85M |
1000 |
1.85 |
0.35 |
1.8*0.9 |
380 |
1.5 |
3175 |
|
SJG-1.5T-1.4M |
1500 |
1.4 |
0.35 |
1.5*0.9 |
380 |
2.2 |
3175 |
|
SJG-2T-1.8M |
2000 |
1.8 |
0.4 |
2*1.5 |
380 |
2.2 |
3175 |
|
SJG-2.5T-2M |
2500 |
2 |
0.6 |
2.2*1.5 |
380 |
3 |
3492 |
|
SJG-3T-1.3M |
3000 |
1.3 |
0.5 |
1.6*1 |
380 |
3 |
3492 |
|
SJG-3.5T-1.5M |
3500 |
1.5 |
0.42 |
1.8*1 |
380 |
3 |
3651 |
|
SJG-4T-2.2M |
4000 |
2.2 |
0.66 |
2*1.2 |
380 |
4 |
3968 |
|
SJG-4.5T-2.5M |
4500 |
2.5 |
0.72 |
2.2*1.6 |
380 |
5.5 |
4603 |
|
SJG-5T-1.5M |
5000 |
1.5 |
0.48 |
1.8*1 |
380 |
5.5 |
3651 |
If you have any requirements, please contact us, we have a professional team to serve you 24 hours a day.
