Mobile scissor lift platform manufacturer
DFLIFT's Mobile scissor lift platform has cooperative service providers and after-sale outlets in major cities and some second-and third-tier cities across the country. Our passion for business ideas and mission have laid the foundation for our services. It also helps us stay on the list of long-term suppliers in the industry; DFLIFT Mobile scissor lift platform covers more than 3, 000 products in the top 10 industrial areas, and is widely used in modern industry and logistics.

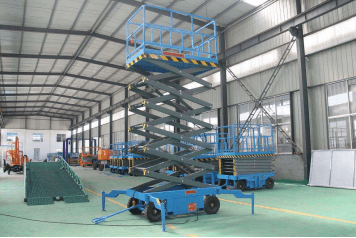

Hydraulic mobile scissor lift platform for sales
Hydraulic mobile scissor lift platform is a multi-purpose, indoor and outdoor vertical lifting machinery, can be widely used in stations, docks, airports, bridges, halls, factory buildings inside and outside the mechanical installation, equipment repair, maintenance and so on. The hydraulic mobile scissor lift platform has the advantages of simple operation, beautiful appearance, convenient movement, stable lifting, high work efficiency and so on.
Rated load: 300kg 500kg 1000kg 2000kg
Lifting height：3m 6m 8m 10m 12m 14m 16m 18m 20m
Walking mode: hand pull or assist walking
Power supply: ac, battery, diesel, manual
Type:Electric Hydraulic
Hydraulic mobile scissor lift specification:
Tables
|
Hydraulic mobile scissor lift specification: |
|||||||
|
Type |
model |
Lifting height(m) |
Load(kg) |
Table size(mm) |
Dimensions(mm) |
power |
power(kg) |
|
Mobile scissor lift platform |
HTSJY0.5-6 |
6 |
500 |
2100*830 |
2250*950*1200 |
380V/1.5KW |
850 |
|
Mobile scissor lift platform |
HTSJY0.5-8 |
8 |
500 |
2100*930 |
2250*1060*1380 |
380V/1.5KW |
950 |
|
Mobile scissor lift platform |
HTSJY0.5-10 |
10 |
500 |
2100*1200 |
2200*1350*1550 |
380V/2.2KW |
1400 |
|
Mobile scissor lift platform |
HTSJY0.5-12 |
12 |
500 |
2550*1530 |
2800*1700*1750 |
380V/3KW |
2200 |
|
Mobile scissor lift platform |
HTSJY0.5-14 |
14 |
500 |
2810*1500 |
3070*1730*1850 |
380V/3KW |
2400 |
|
Mobile scissor lift platform |
HTSJY0.5-16 |
16 |
500 |
2810*1600 |
3070*1810*2080 |
380V/4KW |
3500 |
|
Mobile scissor lift platform |
HTSJY0.5-18 |
18 |
500 |
3070*1600 |
3350*1810*2080 |
380V/4KW |
3900 |

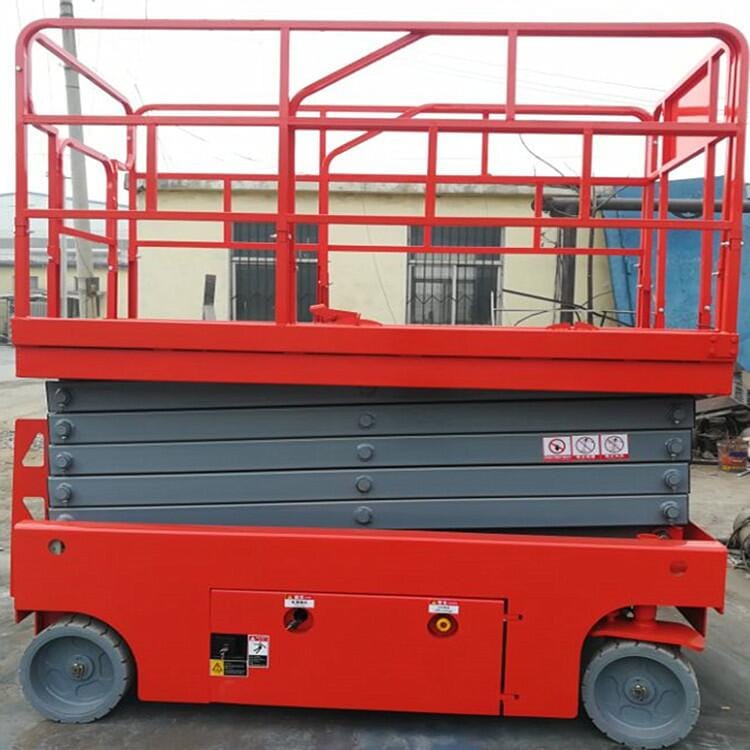

Self-propelled scissor lift platform price
Self-propelled scissor lift platform itself has the functions of walking and lifting, the walking direction is controlled by the control handle, the walking speed can be adjusted and the brake device is provided, and the DC motor is driven by the battery to walk and rise and fall. Ac motor and diesel engine can also be used for walking and lifting, wireless electronic remote control can also be used for lifting, no manual traction, no external power supply, flexible and convenient movement, making aerial operation more convenient and faster. Self-propelled scissor lift platform is an ideal high-altitude equipment for efficient and safe production in modern enterprises.
Rated Loading Capacity: 320kg 480kg
Min. Lifting Height: 800mm
Max. Lifting Height：16000mm
Main Material:High duty steel
After-sales Service Provided:Field installation, commissioning and training
Platform:Anti-skid Checkered Plate
Voltage:110V,220V,380V, customized
Technical parameter for Electric self-propelled scissor lift platform aerial working platform:
Tables
|
Product Specifications |
GTJZ 06 |
GTJZ 08 |
GTJZ 10 |
GTJZ12 |
|
working height |
7.8m |
10m |
12m |
13.8m |
|
platform height |
5.8m |
8m |
10.0m |
12m |
|
platform height stowed |
1.07m |
1.23m |
1.37m |
1.49m |
|
platform length |
1.67m |
2.27m |
2.27m |
2.27m |
|
platform extension length |
0.9m |
0.9m |
0.9m |
0.9m |
|
platform width |
0.76m |
0.81m |
1.17m |
1.17m |
|
Overall Height |
2.18m |
2.34m |
2.48m |
2.59m |
|
Overall length |
1.86m |
2.42m |
2.42m |
2.42m |
|
Overall Width |
0.76m |
0.81m |
1.17m |
1.17m |
|
Wheelbase |
1.31m |
1.87m |
1.87m |
1.87m |
|
Ground Clearance |
0.1m |
0.1m |
0.1m |
0.1m |
|
Lift capacity |
230kg |
230kg |
320kg |
320kg |
|
Lift Capacity-Extension Deck |
113kg |
113kg |
113kg |
113kg |
|
Lift-Up |
27s |
37s |
45s |
50s |
|
Lift-Down |
22s |
32s |
35s |
38s |
|
Weight |
1415kg |
2250kg |
2440kg |
2860kg |
|
Drive Speed(Platform Elevated) |
0-5km/h |
0-3.5km/h |
0-3.5km/h |
0-3.5km/h |
|
Drive Speed(Platform Lowered) |
0-0.8km/h |
0-0.8km/h |
0-0.8km/h |
0-0.8km/h |
|
Turning Radius-outside |
0 |
0 |
0 |
0 |
|
Turning Radius-inside |
1.64m |
2.10m |
2.14m |
2.14m |
|
Grade ability |
30% |
25% |
25% |
25% |
|
Maximum Tilt |
3° |
3° |
3° |
3° |
|
Non-marking solid tires |
15*5 |
15*5 |
15*5 |
15*5 |
|
Battery |
6v*4/225Ah |
6v*4/225Ah |
6v*4/225Ah |
6v*4/225Ah |
|
Charger |
30A automatic |
30A automatic |
30A automatic |
30A automatic |
Mobile scissor lift platform for sales
• The DFLIFT Mobile scissor lift platform, make almost any job easier.
• The DFLIFT Mobile scissor lift platform is essential wherever lifting, positioning, assembling, stacking, unstacking, transporting to the need for an adjustable height is part of the job Ideal for light industrial handling and as always when we are talking DFLIFT Mobile scissor lift platform outstanding value for money.
Capacity:150-3000KG
Lift Drive / Actuation:Hydraulic
Min. Lifting Height:350mm
Hydraulic:Foot-type hydraulic
Product Type:Mini scissor lift table
DFLIFT Mobile scissor lift platform:
• Coating - The DFLIFT Mobile scissor lift platform is delivered with powder coating to produce a good and lasting surface.
• Operation - New and improved design of descent control.
Just press the knob - no more turning and stuck stem controls.
Mini scissor lift platform Specification Data
Tables
|
Model |
|
CYT300ES |
|
Load Capacity |
kg |
300 |
|
Min. Height |
mm |
350 |
|
Max. Heightg |
mm |
970 |
|
Tabel Dimensions |
mm |
820×500 |
|
Total Length |
mm |
1070 |
|
Handle Height |
mm |
970 |
|
Net Weight |
kg |
90 |
|
Packing Dimensions |
mm |
900x520x360 |
|
Remark |
|
*ES= with digital scale |
FAQ:
Tables
|
Questions |
Answers |
|
Are you a factory or trading company? |
We’re factory with over 20years exporting experience. |
|
What’s the MOQ? |
1UNIT,the more,the better. |
|
What’s the payment terms? |
<USD4999: 100%TT in advance. >USD5000: 30%TT in advance,balance before shipment. >USD100,00: TT or Irrevocable L/C At Sight. |
|
Do you offer OEM&ODM service? |
Yes,like lifting capacity, lifting height, size of platform,painting color,logo,manual etc. |
|
What’s the delivery time? |
15~20days after down payment |
|
What’s the quality warranty? |
24 months.Offer free parts for replacement. |
|
How can I get the after-sales service? |
We offer videos,pictures and technical guidance immediately. |
|
What’s your QA&QC policy? |
3times 100% inspection before shipping. |
|
Can you tell me your clients in my country? |
Of course. But only after the permission of customers. |
