Low profile scissor lift platform for sale
Henan DFLIFT Machine Co., Ltd., dedicated to solving the problems of handling facilities and mechanical automation in warehousing workshop for customers, is an industrial company specializing in technical support, sales and after-sale maintenance of logistics handling equipment, warehousing and construction equipment. DFLIFT's products and services cover a number of industrial areas. Low profile scissor lift platform is all over the place.
Rated load:500kg 1000kg 1500kg 2000kg
The minimum height: 180mm
The highest height: 1000mm
Power supply: single-phase alternating current
U-shaped electric low profile scissor lift platform price:
U-shaped electric low profile scissor lift platform in most manufacturing, processing, printing or other material handling operation. They feature the benefits of proven and reliable hydraulic technology. U-shaped electric low profile scissor lift platforms are a durable, economical scissor lift table that improve productivity and enhance workplace ergonomics for a wide range of material handling operations. U-shaped electric low profile scissor lift platform are designed to lift 2 way entry pallets from the pallet truck without the need to use a ramp to load onto a table.
Electric low profile scissor lift specifications：
Tables
|
Model |
Capacity |
Min. /max. table height |
Table Size |
Base Size |
Lifting Time |
Power |
Net Weight |
|
kg |
mm |
mm |
mm |
s |
/ |
kg |
|
|
DF1001C |
1000 |
85/860 |
1450*1140 |
1325*1074 |
25 |
380V/50Hz |
357 |
|
DF1002C |
1000 |
85/860 |
1600*1140 |
1325*1074 |
25 |
380V/50Hz |
364 |
|
DF1003C |
1000 |
85/860 |
1450*800 |
1325*734 |
25 |
380V/50Hz |
326 |
|
DF1004C |
1000 |
85/860 |
1600*800 |
1325*734 |
25 |
380V/50Hz |
332 |
|
DF1005C |
1000 |
85/860 |
1600*1000 |
1325*734 |
25 |
380V/50Hz |
352 |
|
DF1501C |
1500 |
105/870 |
1600*800 |
1325*734 |
30 |
380V/50Hz |
302 |
|
DF1502C |
1500 |
105/870 |
1600*1000 |
1325*734 |
30 |
380V/50Hz |
401 |
|
DF1503C |
1500 |
105/870 |
1600*1180 |
1325*734 |
30 |
380V/50Hz |
415 |
|
DF2001C |
2000 |
105/870 |
1600*1180 |
1427*1114 |
35 |
380V/50Hz |
419 |
|
DF2002C |
2000 |
105/870 |
1600*1000 |
1427*734 |
35 |
380V/50Hz |
405 |

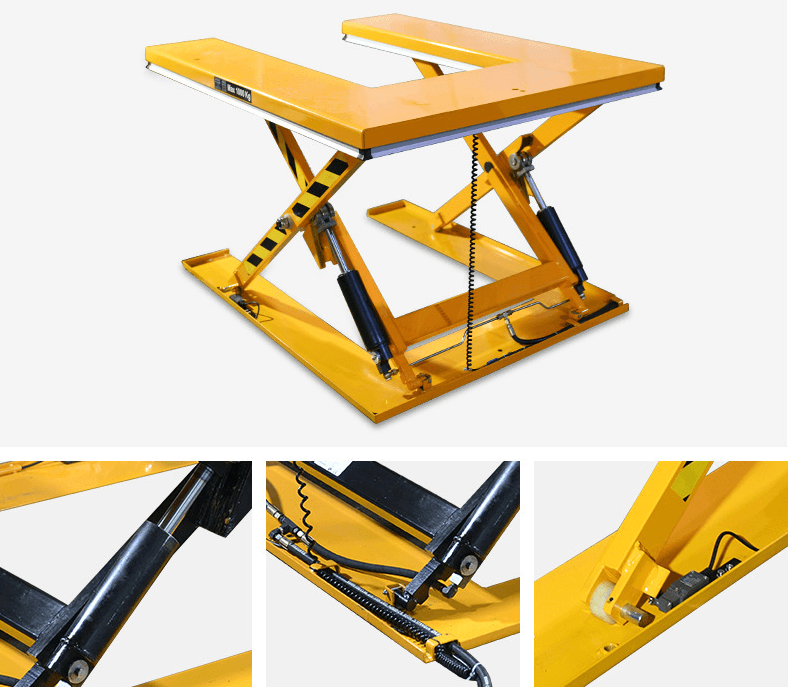

U-shaped electric low profile scissor lift platform：
1. Heavy duty design, using 380V/50Hz AC power supply.
2. Compliance with EN1570 and ANSI/ASME security standards.
3. High quality power supplies are produced in Europe.
4. The bottom of the table is equipped with a safety bar setting, when the table falls and encounters obstacles to stop falling, to ensure safety.
5. The internal power group is equipped with a safety valve and a compensation flow switch. Safety valve can prevent overload operation and compensate flow.
6. The switch can control the low speed, and the hydraulic system is equipped with explosion-proof valve, which can prevent the platform car from falling rapidly when the oil pipe burst.
7. The design of anti-clamping fork is adopted to prevent clamping injury.
8. Full automatic Lubrication Design of Shaft liner at Pivot Point.
9. Detachable rings for convenient operation and installation of lifting platform.
10 Unique attachment design, easy to use with truck
