In floor (ground) scissor lift platform：
DFLIFT can design and manufacture in floor (ground) scissor lift platform with special sizes, carrying capacity, different power sources and explosion-proof electrical appliances according to customer requirements. High quality products, is the fundamental development of the enterprise, the company's production of hydraulic lifts, lifting platform from every detail, every lift products strive to do better. "Focus on innovation, Seiko wisdom", is the company's constant pursuit. "People-oriented, reputation first", is the eternal commitment to customers.
Lifting weight: 3500 (kg)
Rise time: 50 (s)
Lifting height: 1750 (mm)
Power supply: 380 (V) 220V 415V
In ground cargo scissor lift platform:
Rated Loading Capacity: 500kg-40ton
Max. Lifting Height: 6m
Type:Hydraulic
Power supply: three-phase alternating current
Table size: specified by customer
In floor scissor lift platform specification:
Tables
|
Model |
Lift height (m) |
Stops |
Min height (mm) |
Load capacity (kg) |
Table size (L*W) (mm) |
Power output (kw) |
|
|
DFG0.3-4.5 |
4.5 |
2 |
150 |
300 |
1000*800 |
1.5 |
|
|
DFG0.5-4.5 |
500 |
1500*1000 |
1.5 |
||||
|
DFG1.0-4.5 |
1000 |
1500*1500 |
2.2 |
||||
|
DFG2.0-4.5 |
2000 |
2000*1000 |
2.2 |
||||
|
DFG3.0-4.5 |
160 |
3000 |
2000*1200 |
3.0 |
|||
|
DFG3.0-4.5( car lift) |
5000*3000 |
4.0 |
|||||
|
DFG0.3-7.5 |
7.5 |
3 |
150 |
300 |
1000*1000 |
2.2 |
|
|
DFG0.5-7.5 |
500 |
1200*1200 |
2.2 |
||||
|
DFG1.0-7.5 |
1000 |
1800*1400 |
3.0 |
||||
|
DFG2.0-7.5 |
2000 |
2000*1500 |
3.0 |
||||
|
DFG3.0-7.5 |
160 |
3000 |
2000*1600 |
4.0 |
|||
|
DFG1.0-10.5 |
10.5 |
3-4 |
150 |
1000 |
1800*1400 |
3.0 |
|
|
DFG1.0-14 |
14 |
4-5 |
1800*1500 |
3.0 |
How to buy an in floor scissor lift？
In general, we will give you a drawing according to the site used by the customer. Customers can dig a foundation pit about the size of the platform according to the drawings. After we send the product to your site, you put the lifting platform into the foundation pit, fixed firmly, turn on the power supply can be used. In general, you only need to replace the hydraulic oil on a regular basis, no other maintenance costs.

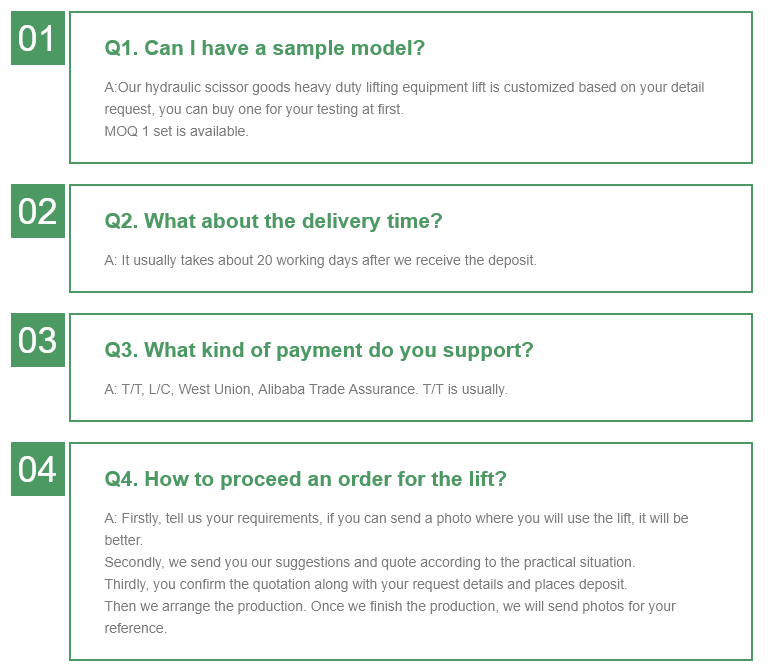

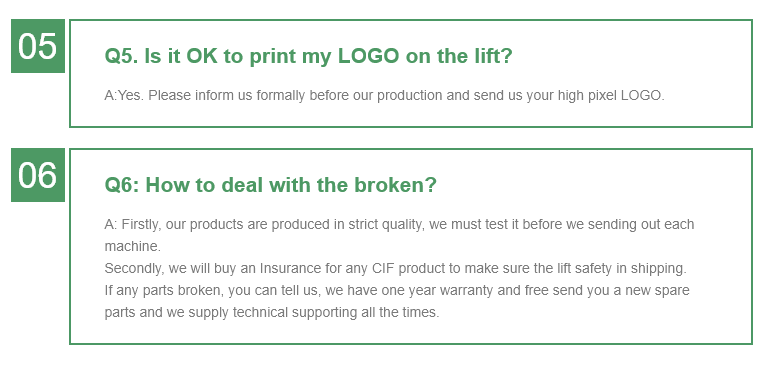

FAQ:
