Hydraulic scissor lift platform manufacturer
Hydraulic scissor lift platform is a special equipment for aerial work, which is widely used. Its shearing fork mechanical structure makes the lifting platform have higher stability, wider working platform and higher bearing capacity, so that the range of aerial work is larger, and it is suitable for many people to work at the same time. Lifting power is divided into 220V or 380V power supply, special environment can also use explosion-proof pumping stations and explosion-proof appliances.

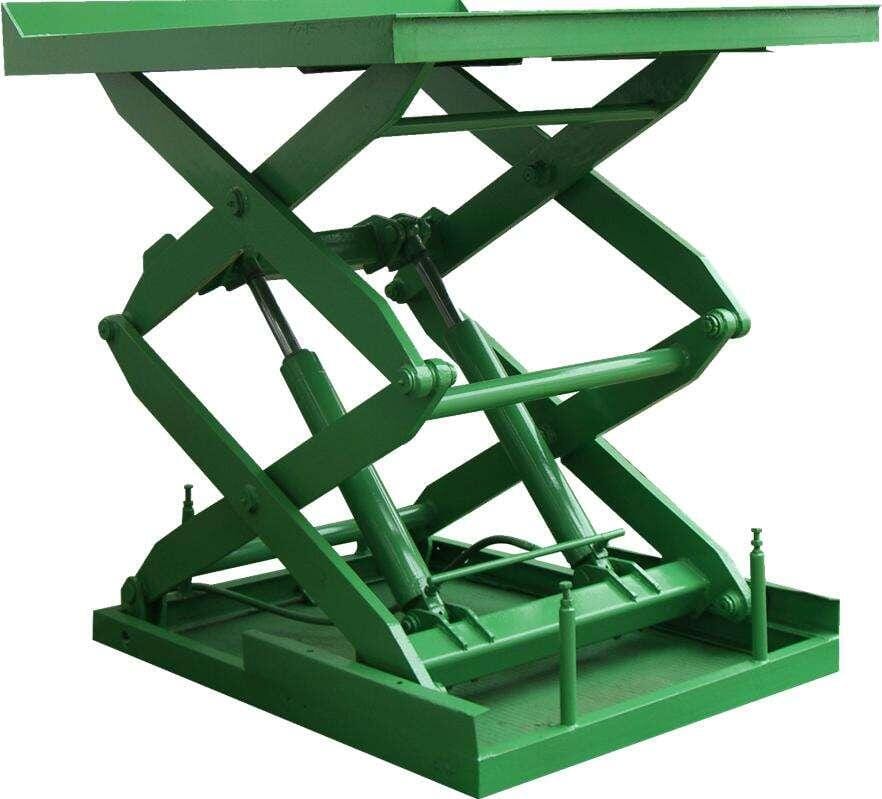

Stationary hydraulic scissor lift platform for sale
Rated Loading Capacity:0.3t-40t
Max. Lifting Height: 6000mm
Voltage: DC 12V/24V AC 220V/380V
Usage: Lifting cargo
Stationary hydraulic cargo scissor lift platform is a special hydraulic lifting platform used to transport goods between the height of the building floor, which is mainly used for the transportation of all kinds of working floor objects up and down, and the lifting of cars in the underground garage floor of the three-dimensional garage, and so on. The Stationary hydraulic cargo scissor lift platform is equipped with anti-fall and overload safety protection device, and the operation button can be set on each floor and the working table of the lifting platform to realize multi-point control. The product structure is strong, the carrying capacity is large, the rise and fall is stable, the installation and maintenance is simple and convenient.
Stationary hydraulic cargo scissor lift platform parameter：
Tables
|
Model |
Capacity(kgs) |
Min height(mm) |
Lifting range (mm) |
Platform size (mm) |
Motor power (kw) |
Weight(kgs) |
|
SJG0.3-3 |
300 |
650 |
3000 |
200*1200 |
1.1 |
780 |
|
SJG0.5-5 |
500 |
850 |
5000 |
2000*1000 |
2.2 |
1200 |
|
SJG1-3.3 |
1000 |
840 |
3300 |
1900*1500 |
3 |
1300 |
|
SJG1-4.3 |
1000 |
860 |
4300 |
2500*2000 |
3 |
2500 |
|
SJG1-6 |
1000 |
1230 |
6000 |
2200*1500 |
2.2 |
2500 |
|
SJG2-3.5 |
2000 |
1000 |
3500 |
2200*1500 |
3 |
1800 |
|
SJG3-4.5 |
3000 |
1060 |
4500 |
2200*1800 |
4 |
2200 |
|
SJG1.5-3 |
1500 |
820 |
3000 |
1800*1200 |
2.2 |
1480 |
|
SJG2-4.8 |
2000 |
980 |
4800 |
2000*2000 |
4 |
2200 |
|
SJG2-6 |
2000 |
1150 |
6000 |
2200*2000 |
5 |
2800 |
|
SJG1-8 |
1000 |
1320 |
8000 |
2200*1800 |
4 |
3000 |
|
SJG2-9 |
2000 |
1400 |
9000 |
2500*1800 |
7.5 |
3800 |
|
SJG2-11 |
2000 |
1900 |
11000 |
2500*1500 |
7.5 |
4100 |
|
SJG3-10 |
3000 |
2100 |
10000 |
2500*1500 |
7.5 |
4300 |

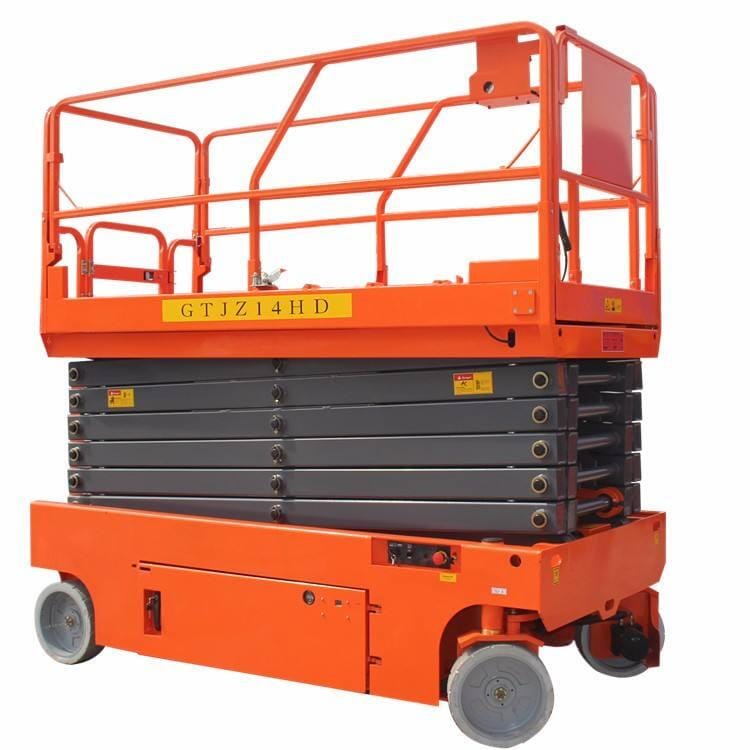

Self-propelled hydraulic scissor lift platform
Rated Loading Capacity: 320kg 480kg
Min. Lifting Height: 800mm
Max. Lifting Height：1600mm
Main Material:High duty steel
After-sales Service Provided:Field installation, commissioning and training
Platform:Anti-skid Checkered Plate
Voltage:110V,220V,380V, customized
Self-propelled hydraulic scissor lift platform itself has the functions of walking and lifting, the walking direction is controlled by the control handle, the walking speed can be adjusted and the brake device is provided, and the DC motor is driven by the battery to walk and rise and fall. Ac motor and diesel engine can also be used for walking and lifting, wireless electronic remote control can also be used for lifting, no manual traction, no external power supply, flexible and convenient movement, making aerial operation more convenient and faster. It is the ideal equipment for safe production in modern enterprises.
Self-propelled hydraulic scissor lift platform parameters：
Tables
|
terms |
SJZ-6 |
SJZ-8 |
SJZ-10 |
SJZ-12 |
SJZ-14 |
|
Capacity |
230kg |
230kg |
320kg |
320kg |
200kg |
|
capacity-extension deck |
113kg |
113kg |
113kg |
113kg |
113kg |
|
Max working height |
8m |
10m |
12m |
14m |
16m |
|
Max platform height |
6m |
8m |
10m |
12m |
14m |
|
Overall dimension |
1.86*0.76*1.85m |
2.42*0.83*2.07m |
2.42*1.17*1.93m |
2.42*1.17*2.06m |
2.79*1.27*2.06m |
|
Platform size |
1.67*0.74m |
2.27*0.83m |
2.27*1.14m |
2.27*1.14m |
2.64*1.14m |
|
Extension size |
900mm |
900mm |
900mm |
900mm |
900mm |
|
Wheelbase |
1400mm |
1870mm |
1870mm |
1870mm |
2240mm |
|
Min turning radius |
1600mm |
2250mm |
2230mm |
2230mm |
2250mm |
|
lifting/driving motor |
24v/3.0kw |
24v/3.3kw |
24v/3.3kw |
24v/4.5kw |
24v/4.5kw |
|
Driving speed (fold) |
3.5km/h |
3.5km/h |
3.5km/h |
3.5km/h |
3.5km/h |
|
Driving speed (rising) |
0.8km/h |
0.8km/h |
0.8km/h |
0.8km/h |
0.8km/h |
|
Battery |
4*6v/225Ah |
4*6v/225Ah |
4*6v/240Ah |
4*6v/260Ah |
4*12v/300Ah |
|
Charger |
24v/25A/Customized |
24v/25A/Customized |
24v/25A/Customized |
24v/25A/Customized |
24v/25A/Customized |
|
Grade ablity |
25% |
25% |
25% |
25% |
25% |
|
Tires |
non-marking tires |
non-marking tires |
non-marking tires |
non-marking tires |
non-marking tires |
|
Weight |
1260kg |
2100kg |
2480kg |
3100kg |
3180kg |

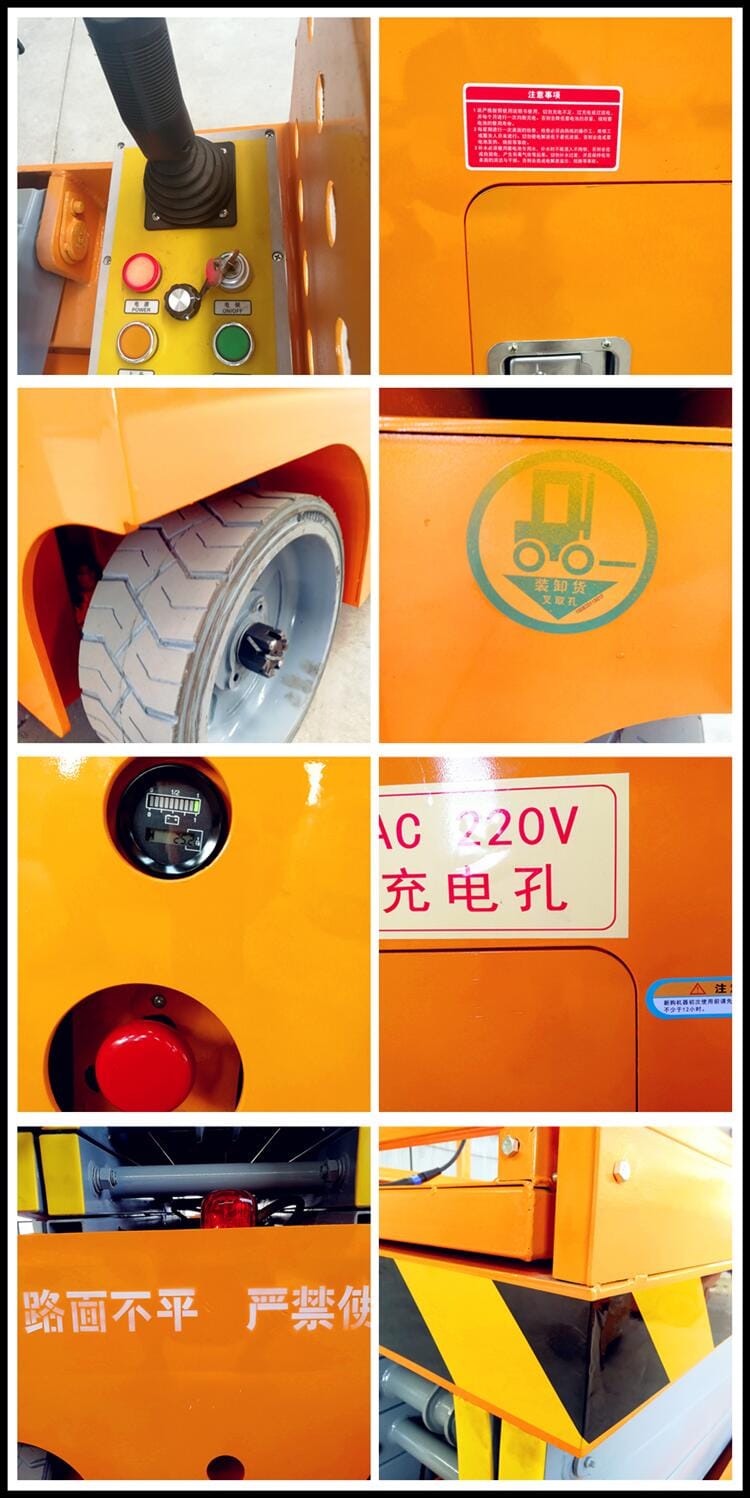

Self-propelled hydraulic scissor lift platform parts show：

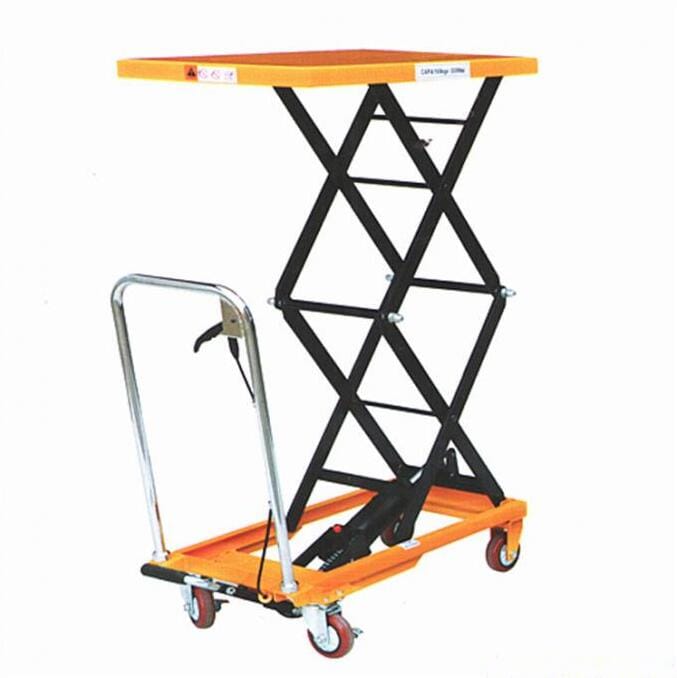

Manual hydraulic scissor lift platform：
Rated Loading Capacity: 150kg 300kg 500kg 1000kg 1500kg 2000kg 330 lbs. 660 lbs. 1100 lbs. 2200 lbs. 3300 lbs. 4400 lbs.
Max table height:1500/2000 mm
After-sales Service Provided:Online support, Engineers available to service machinery overseas
Certification:CE ISO
Manual hydraulic scissor lift platform is a small and convenient, flexible to use, heavy load, strong and durable cargo handling tools, commonly known as "ground cow". In addition to the function of carrying the goods, in order to facilitate the take-off and landing of the goods, there is a hydraulic device between the chassis and the wheel, which can easily push the car under the base of the cargo box, and then lift the chassis by hydraulic pressure to pick up the goods.Then you can drag the goods to move, after arriving at the destination, the chassis will be landed with hydraulic pressure, the goods will also land, you can easily pull out the truck. The complex process of manual handling is saved. Manual hydraulic scissor lift platform is a good helper in the handling of goods in the workshop.
Manual hydraulic scissor lift platform Technology Parameters：
Tables
|
Model |
HW-150 |
HW-300 |
HW-500 |
HW-750 |
HW-300D |
|
Name |
Hydraulic Scissor lift table |
Double hydraulic Scissor lift table |
|||
|
load-bearing(kg) |
150 |
300 |
500 |
750 |
300 |
|
Overall dimensions(mm) |
900*450*900 |
1050*520*900 |
1120*520*900 |
1120*520*900 |
1050*520*900 |
|
Platform size(mm) |
708*450 |
820*520 |
820*520 |
820*520 |
820*520 |
|
Min height(mm) |
225 |
240 |
260 |
280 |
360 |
|
Max height(mm) |
700 |
750 |
780 |
780 |
1220 |
|
Wheel size(mm) |
Φ100*w30 |
||||
|
package size(mm) |
810*490*250 |
920*590*250 |
920*560*300 |
920*590*300 |
920*570*380 |
|
Weight(kg) |
49 |
66 |
75 |
75 |
103 |
Manual hydraulic scissor lift platform features:
1. Manual (or pedal hydraulic lifting);
2. Walking by hand;
3. With brakes on the universal wheel;
4. Table size can be customized by customers.
5. It can be used as an ideal material transportation platform on the assembly line.
6. Made of high strength materials, strong and durable;
7. Pedal hydraulic lifting can make the table rise to any ideal height;
8. The falling mode of kneading hand can accurately control the falling of the table surface.
9. Overload valve can effectively protect the safety of operators and materials.
Why choose DFLIFT？
Our company's main customers are: Samsung Electronics (Suzhou) Co., Ltd. / Yaben Chemical Co., Ltd. / ox Elevator (China) Co., Ltd. / Hong Kong Hongxing Industrial Co., Ltd. / Jiangsu Debang Logistics Co., Ltd. / Hongquan. Enterprise (Suzhou) Co., Ltd. / Mitsubishi Motor parts (China) Co., Ltd. / Oruikang (China) Co., Ltd. / Jiangxi East China Science and Technology Park Co., Ltd. / Tianjin Tianfa Xinji Machinery Co., Ltd. / Solwei-Hengchang. Chemical (Zhangjiagang) Co., Ltd. / Jinan Hercules Machinery Manufacturing Co., Ltd. / Clarie Water treatment Co., Ltd. / Hunan Sanqing Pharmaceutical Co., Ltd. / Otelsway Energy (Taicang) Co., Ltd., etc.
DFLIFT will use "excellent products, reasonable prices, enthusiastic service" to welcome your arrival!
