500kg (1100lbs.) scissor lift manufacturer
500kg (1100 lb) scissors lift platform is a widely used machine that can be seen almost everywhere. There are 500kg (1100 lb) scissor lift platform, 500kg (1100 lb) mobile scissor lift platform and 500kg fixed scissor lift platform. As a professional manufacturer of scissors lifting platform in China, DFLIFT has all kinds of scissors lifting platform products and the best customer source. Our products are all over the world.

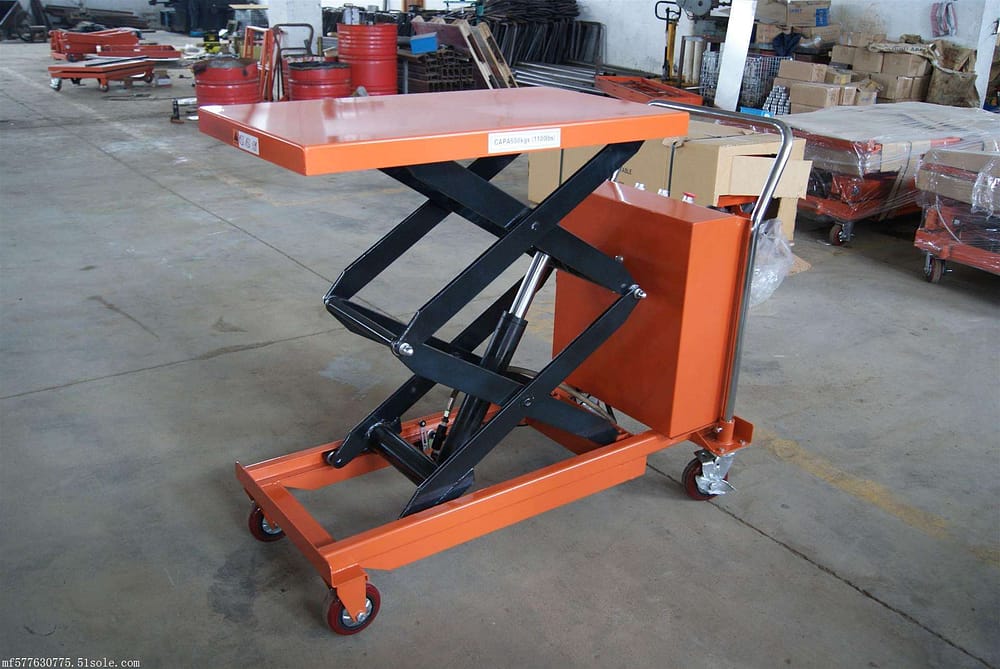

500kg (1100lbs.) scissor lift platform trolley price:
All types of manufacturing and warehouse facilities use full-function hydraulic 500kg (1100lbs.) scissor lift platform safety features include: electric front beam protection device to protect grips when the worktable drops, brass speed fuse, regardless of hydraulic pressure, can maintain the height of the platform, 24V AC button manual control, maintenance pillar and upper stroke limit switch, Maximize the stop of the worktable to reduce motor wear. 2HP, 460V, 3-phase, 60 Hz fully enclosed motor standard, other voltage available. 3000 psi hydraulic component rating.
▲ These models can be used in above-floor or in-floor pit applications.
▲ Robust structure yet light weight.
▲ Made of Aluminum
▲ Two brakes increase safety.
▲ Stainless structure ideal for pharmaceutical,food,beverage etc..
▲ Meet EN1750.
Rated Loading Capacity: 350kg 500kg 1000kg
Lifting Height: 0.72-1.7meter
Certification: CE ISO9001
Wheel type: nylon
Power: Manual/battery
Table Size: 500*800, 450*700-500*815 or as your design
500kg hydraulic lift table parameter：
Tables
|
capacity |
lifting height |
scissor quantity |
wheel |
table size |
|
150kg |
0.72 |
1 |
nylon wheel |
450*700 |
|
150kg |
1.22 |
2 |
nylon wheel |
450*700 |
|
300kg |
0.9 |
1 |
nylon wheel |
500*815 |
|
300kg |
1.3 |
2 |
nylon wheel |
500*815 |
|
350kg |
1.3 |
2 |
nylon wheel |
500*815 |
|
350kg |
1.5 |
2 |
nylon wheel |
500*815 |

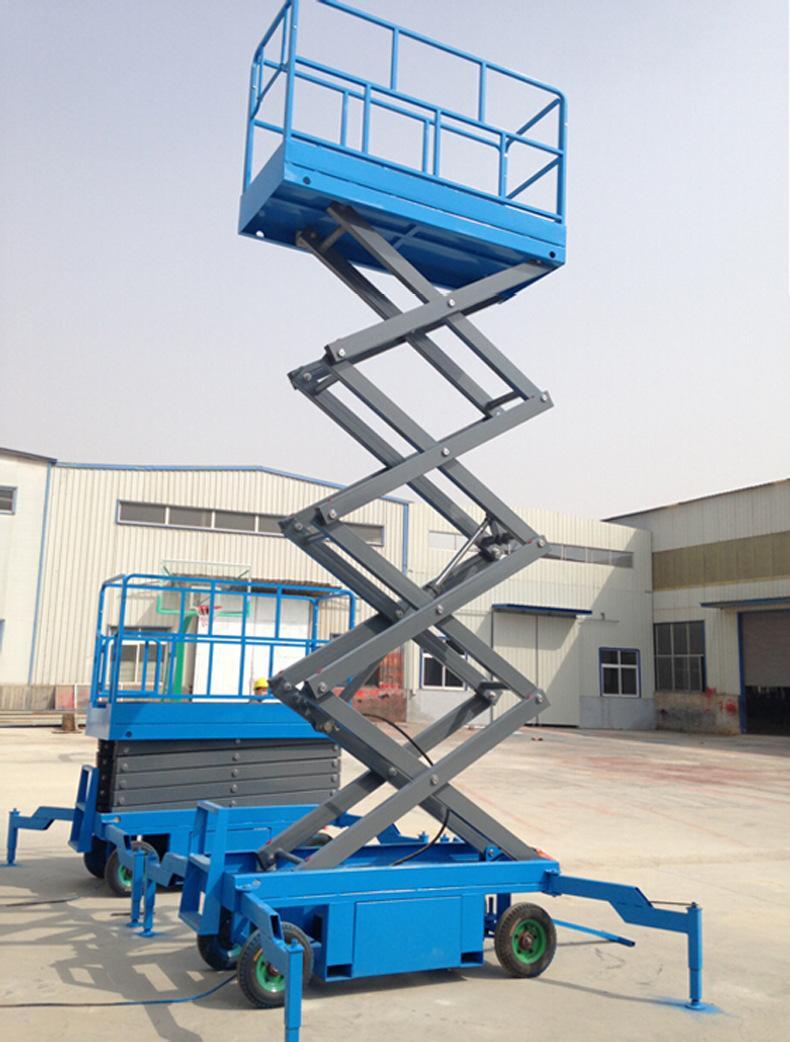

500kg mobile scissor lift platform for sales：
Henan DFLIFT Machine Co., Ltd committed to the development of hydraulic aerial work platform, constantly improve and update our running products, our current products including hydraulic scissor lift platform, mobile hydraulic lift platform, self-propelled scissor lift platform, fixed lift platform, hydraulic lift platform goods, aluminum lift platform, hydraulic arm lift platform and so on. Our products have passed the CE, ISO9001 certification, with novel design, reasonable structure, lifting stability, loading safety, easy operation, easy maintenance and other advantages, and has been exported to more than 80 countries and regions, also has been respected by customers at home and abroad.
Rated Loading Capacity: 300kg 500kg 1 ton 2 ton
Lifting height: 3m 6m 8m 10m 12m 14m 16m 18m
Power: 2.2kw
Power source: single-phase three-phase ac / battery / diesel
Product Model for mobile scissor lift：
Tables
|
Platform size |
Lift capacity |
Height |
Overall size(mm) |
Self-weight(kg) |
|
|
SJYZ06A |
2260*810mm |
380kg |
6m |
2475*810*2158 |
1850kg |
|
SJYZ06 |
2260*1130mm |
550kg |
6m |
2475*1150*2158 |
2060kg |
|
SJYZ08A |
2260*810mm |
230kg |
8m |
2475*810*2286 |
1980kg |
|
SJYZ08 |
2106*930mm |
450kg |
8m |
2260*1130*1100 |
2190kg |
|
SJYZ10 |
2260*1130 |
320kg |
10m |
2475*1150*1964 |
2430kg |
|
SJYZ12 |
2260*1130 |
320kg |
12m |
2475*1150*2542 |
2960kg |
Professional manufacturers up and down control panel mobile scissors lift platform features:
1. High working ability, easy to push back and forth, the most spacious platform for many people to work.
2. The high strength steel structure has the advantages of stable rise and fall and convenient operation.
3. Moving mode: 4 wheels, 2 wheels optional, pneumatic rubber tire, solid rubber tire or polyurethane tire.
4. Power supply: local power available at the working sites (110V, 220V, 380V, 415V), diesel engine, generator.
5. Lifting height: 4 m, 6 m, 8 m, 10 m, 12 m, 14 m, 16 m, 18 m

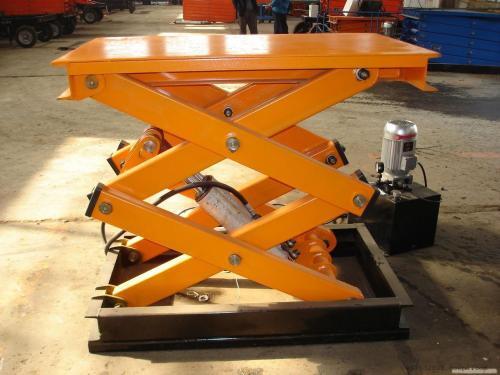

500kg stationary scissor lift platform for sale:
Rated Loading Capacity: 500~3000KG
Table Size: 1300x800
Lowered Height: 190mm
Max. Lifting Height: 500-2000m
500kg stationary scissor lift platform specifications:
Tables
|
Product Name |
fixed hydraulic electric platform lift/stationary scissor lift platform |
|
Maximum platform height |
customized |
|
Maximum working height |
customized |
|
Power Source |
raise and down by AC/DC power |
|
load capacity |
customized |
|
lift platform model |
SJG |
|
color |
orange , green ,or customized |
|
main performance |
* the trigger signal,automatic leveling * Equipped with safety protection device to prevent-lift overload * A safety valve to prevent hydraulic pipeline rupture *Emergency lowering device-under the condition on power failure *safety interlock device and mutual control system under the floor of the door is provided with a-on |
|
Widely used in |
production line and warehouse ,paper , pharmaceutical ans other industries. can be used as a delivery lift ,transport goods ,stable and reliable ,safe ,economical and practical |
Tables
|
Model |
|
HIW50 |
HIW100 |
HIW200 |
HIW300 |
|
|
Capacity |
Kg/lb |
500/1100 |
1000/2200 |
2000/4400 |
3000/6600 |
|
|
Lowered Height |
Mm/in |
190/7.5 |
190/7.5 |
190/7.5 |
220/8.7 |
|
|
Raised Height |
Mm/in |
1010/40 |
1010/40 |
1010/40 |
1020/40.2 |
|
|
Platform Size (LxB) |
Mm/in |
1300×800 51.2×31.5 |
||||
|
Lifting Time |
Sec |
15 |
25 |
40 |
26 |
|
|
Lifting Speed |
Mm/s |
55 |
40 |
22 |
30 |
|
|
Lowering Speed |
Mm/s |
40 |
35 |
33 |
40 |
|
|
Motor |
Kw |
0.75 |
0.75 |
0.75 |
1.5 |
|
|
Net Weight |
Kg/lb |
160/352 |
220/484 |
280/616 |
320/704 |
|
Why choose DFLIFT 500kg scissor lift?
Warranty policy and service plan.
1.DFLIFT provides our customers with, access tables and roller lifts, reminding us that we are always responsible for promoting our services.
2.Please check our sales department's warranty policy for DFLIFT material handling equipment series. Please note that the warranty applies to end users who purchase directly from DFLIFT.
3.If your product comes from a local distributor, please contact them. We provide a full range of after-sales service for dealers. DFLIFT believes that local strategy is the best way for our distributors and local customers.
4.All lifting equipment supplied by DFLIFT meets our specifications, with a 12-month warranty for major components and 180 days for wearables.
