200kg scissor lift platform for sale
200 kg scissor lift platform are well suited for manufacturing and distributing industries.
Material can be easily loaded onto a cart from a table, lowered to safe transporting height, and raised to unload at a destination.
Feature of hydraulic lift platform:
1) Welded all-steel frame with Powder-coat finish for maximum durability and protection.

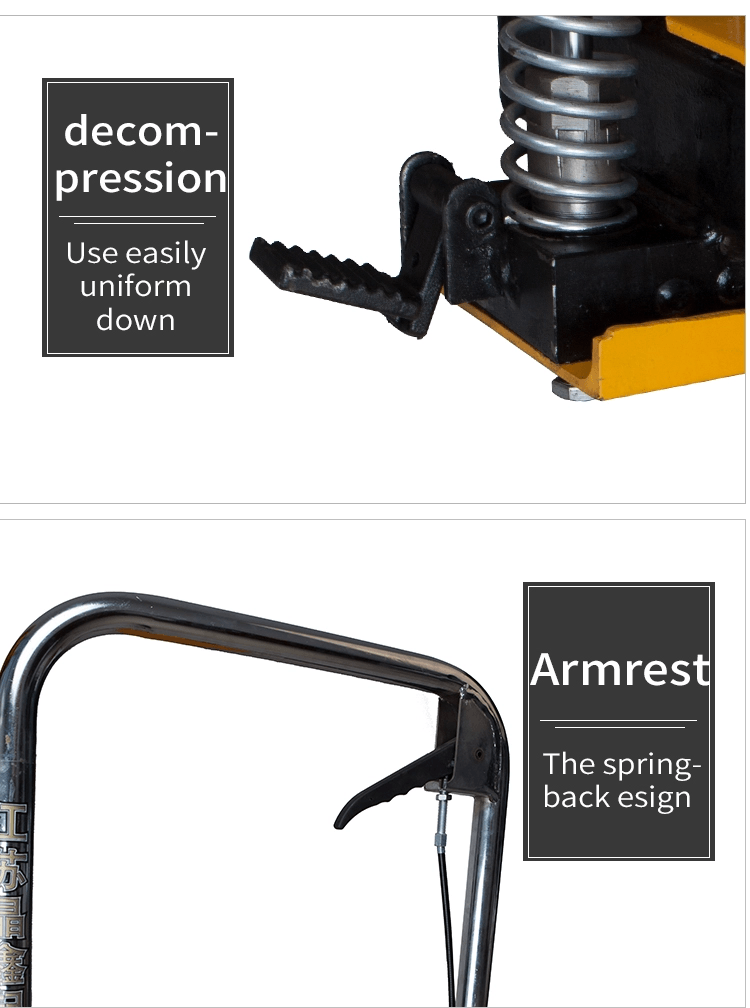

2) Convenient foot pump for easy lifting and lowering.
3) Overload protection ball valve prevents lifting loads past maximum capacity.

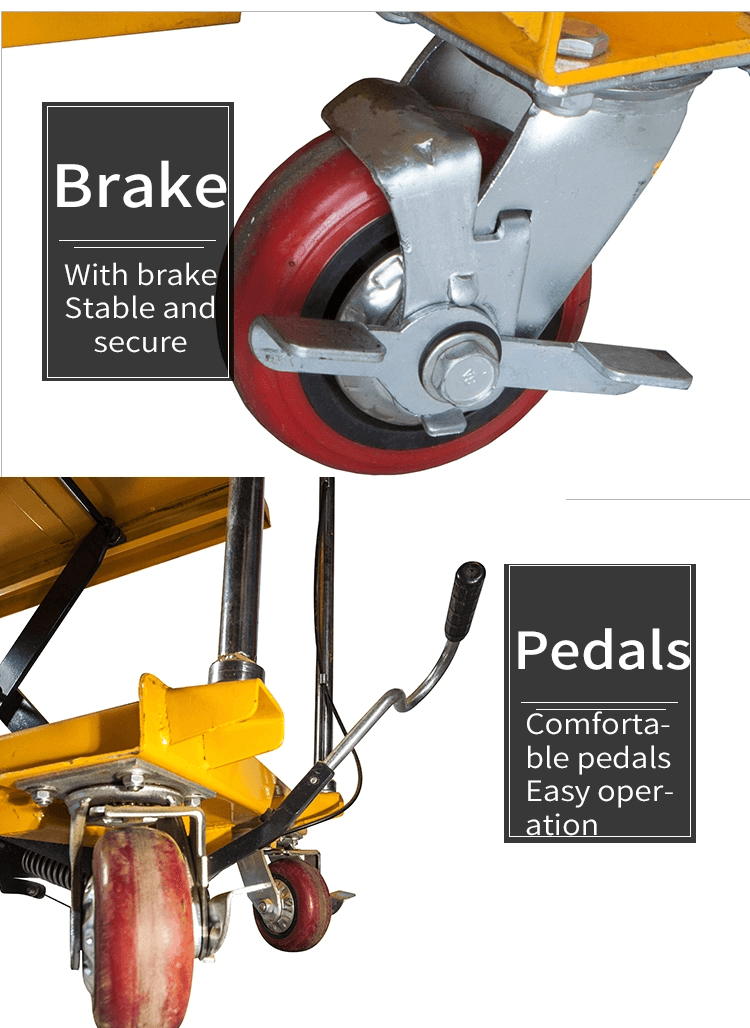

4) Steering casters with brakes.
5) Compact design flexibility and effort moving.
200kg scissor lift platform supplier:
Rated Loading Capacity：200kg
Max. Lifting Height：2m
Lift Drive / Actuation: Electric Motor or manual
Type: Scissor Hydraulic Lift

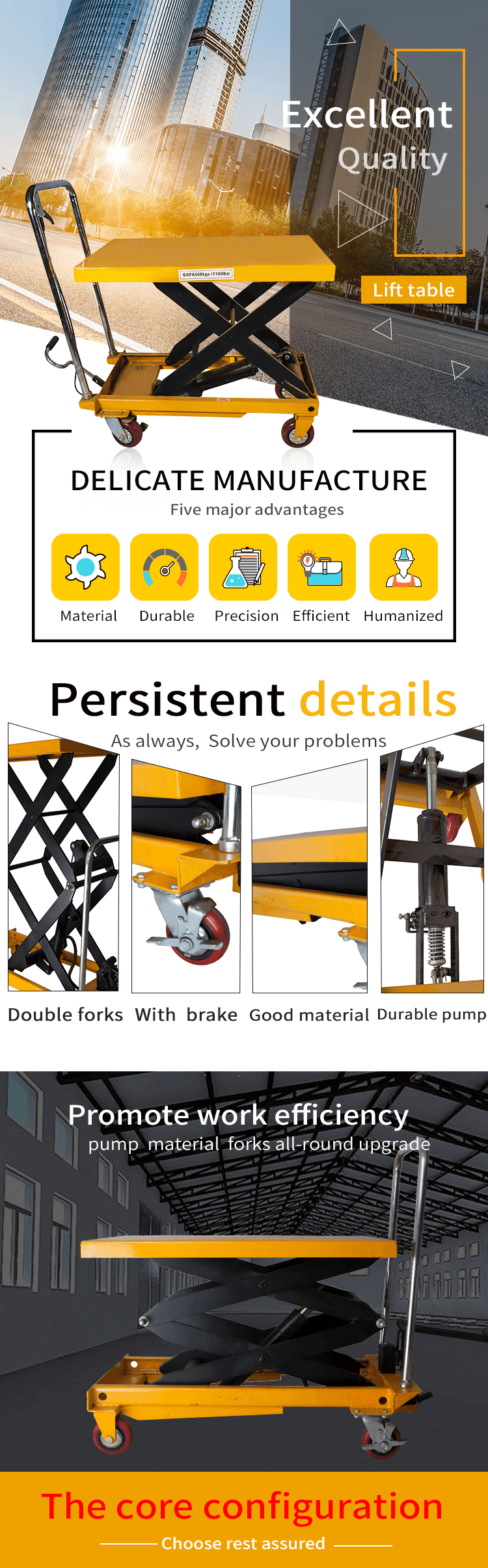

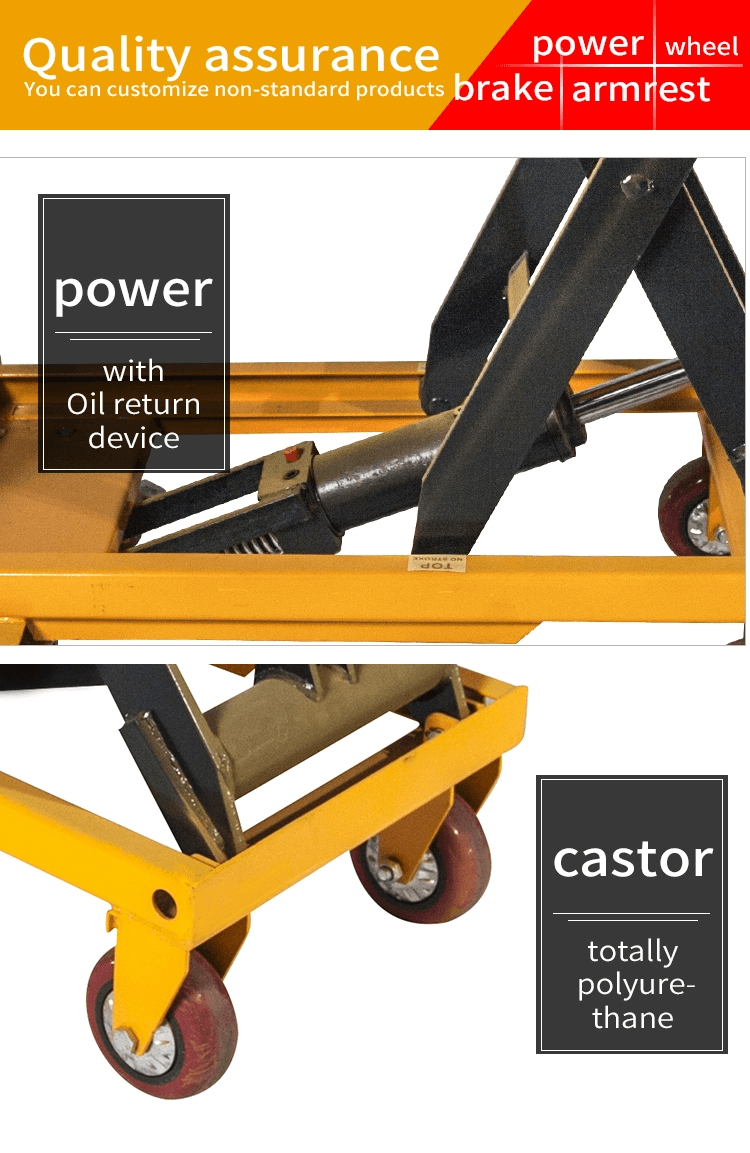

200kg scissor lift platform part show:
Best price of Mechanical lift table scissor lift platform 100kg：
Tables
|
Name |
Type |
Loading capacity |
Table size |
Height increase |
Net weight |
|
Scissor lift table |
PT150A |
150kg |
700*450*35mm |
210-720mm |
40kg |
|
PT150B |
150kg |
700*450*35mm |
302-1260mm |
80kg |
|
|
PT300 |
300kg |
815*500*50mm |
280-900mm |
76kg |
|
|
PT350 |
350kg |
905*500*50mm |
350-1300mm |
106kg |
|
|
PT500A |
500kg |
815*500*50mm |
280-900mm |
82kg |
|
|
PT500B |
500kg |
905*500*50mm |
350-1500mm |
110kg |
|
|
PT800A |
800kg |
1000*510*55mm |
415-1000mm |
128kg |
|
|
PT800B |
800kg |
1200*610*58mm |
450-1500mm |
165kg |
|
|
PT1000A |
1000kg |
1000*510*55mm |
415-1000mm |
137kg |
|
|
PT1000B |
1000kg |
1200*610*80mm |
500-1700mm |
225kg |
|
|
PT1500 |
1500kg |
1200*610*80mm |
380-1000mm |
200kg |
|
|
PT2000 |
2000kg |
1200*610*80mm |
380-1000mm |
230kg |
200kg mobile hydraulic scissor lift platform for sale：
Rated Loading Capacity：200/320kg
Max. Lifting Height：12 meter
Control:JOYSTICK ELECTRONIC
Power supply: battery or diesel
SELF PROPELLED MAN LIFT FOR AERIALWORK MAINTENANCE
200kg mobile hydraulic scissor lift platform is mainly used to lift workers to high places for repair, maintenance, cleaning or installation, etc. You can easily move it to the right work area. Mobile scissors lifts can also be equipped with batteries. With the battery, you don't need to connect AC power, you can lift the moving scissors in some work areas without power. In addition, the 200kg mobile hydraulic scissor lift platform can be installed on the drive wheel and moved by hand without any hardness.
Characteristics of scissors working platform:
high strength of lifting mechanism.
Production of manganese steel rectangular pipe. Equipped with security device.
The elevator is overloaded. Provide safety measures to prevent hydraulic pipeline rupture.
Protect the valve. An emergency descent device in the event of a power outage.
Tables
|
terms |
07series |
08series |
12series |
14series |
||||
|
models |
GTJZ |
|||||||
|
0807DC |
0808DC |
1008DC |
1012DC |
1212DC |
1412DC |
1414DC |
1614DC |
|
|
capacity |
230kg |
380kg |
230kg |
450kg |
320kg |
320kg |
450kg |
200kg |
|
Capacity-extension deck |
113kg |
113kg |
113kg |
113kg |
113kg |
113kg |
113kg |
113kg |
|
Max occupancy |
2 |
2 |
2 |
2 |
2 |
2 |
2 |
2 |
|
Max working |
7.80m |
8.20m |
10.10m |
10.10m |
12.00m |
13.80m |
13.50m |
15.70m |
|
height-A |
||||||||
|
Max platform |
5.80m |
6.20m |
8.10m |
8.10m |
10.00m |
11.80m |
11.50m |
13.70m |
|
height-B |
||||||||
|
Length-C |
1.86m |
2.42m |
2.42m |
2.42m |
2.42m |
2.42m |
2.79m |
2.79m |
|
Width-D |
0.76m |
0.83m |
0.83m |
1.17m |
1.17m |
1.17m |
1.27m |
1.27m |
|
Height(railings |
2.19m |
2.24m |
2.37m |
2.36m |
2.49m |
2.62m |
2.49m |
2.62m |
|
unfolded) |
||||||||
|
Height-E |
1.85m |
1.94m |
2.07m |
1.80m |
1.93m |
2.06m |
1.93m |
2.06m |
|
(railing folded) |
||||||||
|
Platform size |
1.67m× |
2.27m× |
2.27m× |
2.27m× |
2.27m× |
2.27m× |
2.64m× |
2.64m× |
|
(L×w-F) |
0.74m |
0.83m |
0.83m |
1.14m |
1.14m |
1.14m |
1.14m |
1.14 m |
|
Extension deck |
0.90m |
0.90m |
0.90m |
0.90m |
0.90m |
0.90m |
0.90m |
0.90m |
|
size -G |
||||||||
|
Ground |
0.10m |
0.10m |
0.10m |
0.10m |
0.10m |
0.10m |
0.10m |
0.10m |
|
clearance |
||||||||
|
(stowed) |
||||||||
|
Ground |
0.02m |
0.02m |
0.02m |
0.02m |
0.02m |
0.02m |
0.02m |
0.02m |
|
clearance |
||||||||
|
(elevated) |
||||||||
|
wheelbase |
1.40m |
1.87m |
1.87m |
1.87m |
1.87m |
1.87m |
2.24m |
2.24m |
|
Min turning |
0m |
0m |
0m |
0m |
0m |
0m |
0m |
0m |
|
radius |
||||||||
|
(inside) |
||||||||
|
Min turning |
1.60m |
2.25m |
2.25m |
2.23m |
2.23m |
2.23m |
2.25m |
2.25m |
|
radius |
||||||||
|
(outside) |
||||||||
|
Driving motor |
24V/1.5kw |
24V/1.5kw |
24V/1.5kw |
24V/1.5kw |
24V/1.5kw |
24V/1.5kw |
24V/1.5kw |
24V/1.5kw |
|
Lifting motor |
24V/2.0kw |
24V/3.3kw |
24V/3.3kw |
24V/3.3kw |
24V/3.3kw |
24V/4.5kw |
24V/4.5kw |
24V/4.5kw |
|
Driving speed |
4.0km/h |
4.0km/h |
4.0km/h |
4.0km/h |
4.0km/h |
4.0km/h |
4.0km/h |
4.0km/h |
|
(stowed) |
||||||||
|
Driving speed |
0.8km/h |
0.8km/h |
0.8km/h |
0.8km/h |
0.8km/h |
0.8km/h |
0.8km/h |
0.8km/h |
|
(elevated) |
||||||||
|
Lifting/lowering |
18/22sec |
24/34sec |
28/40sec |
28/40sec |
45/36sec |
50/38sec |
60/45sec |
80/60sec |
|
speed |
||||||||
|
batter |
4×6V/ |
4×6V/ |
4×6V/ |
4×6V/ |
4×6V/ |
4×6V/ |
4×12V/ |
4×12V/ |
|
225Ah |
225Ah |
225Ah |
225Ah |
240Ah |
260Ah |
300Ah |
300Ah |
|
|
charger |
24V/25A |
24V/25A |
24V/25A |
24V/25A |
24V/25A |
24V/25A |
24V/25A |
24V/25A |
|
Max |
0.25 |
0.25 |
0.25 |
0.25 |
0.25 |
0.25 |
0.25 |
0.25 |
|
grade ability |
||||||||
|
Max tilt |
3°/1.5° |
3°/2° |
3°/1.5° |
3°/2° |
3°/2° |
3°/1.5° |
3°/2° |
3°/1.5° |
|
tires |
Φ323× |
Φ381× |
Φ381× |
Φ381× |
Φ381× |
Φ381× |
Φ381× |
Φ381× |
|
100mm |
127mm |
127mm |
127mm |
127mm |
127mm |
127mm |
127mm |
|
|
Weight |
1260kg |
2020kg |
2140kg |
2270kg |
2520kg |
3140kg |
3060kg |
3220kg |
Why choose DFLIFT?
1. There are many kinds of DFLIFT products, including manual lift platform, electric scissor lift platform series, aluminum alloy lifting platform, diesel lifting platform, freight elevator series, climbing car series and so on.
2. Two production bases: covers an area of 20000 square meters. One is in Henan, the other is in Shandong. .
3. Quality assurance: all our products have a one-year warranty. CE and ISQ certification. .
4. Professional engineer service: more than 20 professional engineers serve you at any time. Tell us what you think, and we can help you realize it. .
5. Fast and safe delivery: we work with a number of professional logistics companies to ensure that the goods reach you quickly and safely.
