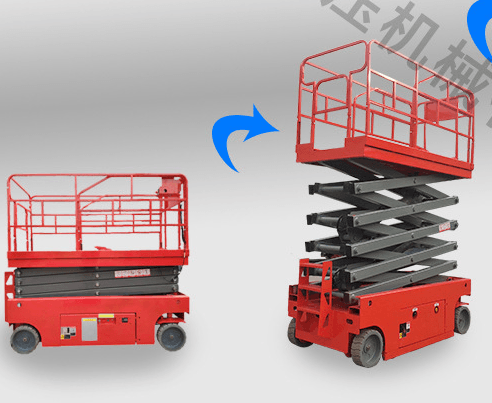

12 meter scissor lift platform
Features: 12 meter scissor lift platform main features are: the use of personnel can not under the lifting platform to control the mechanical lifting, walking, can control the equipment on the table to travel to other work places. The device itself has the function of walking and steering drive, without manual traction and external power supply. 12 meter scissor lift platform is flexible and convenient to move, which makes working at high altitude more convenient and fast. It is an ideal equipment for efficient and safe production in modern enterprises.
Composition: the imported hydraulic drive motor has the function of self-locking, braking separation when the drive wheel works, and automatic locking when it does not work.
12 meter scissor lift specifications:
Rated Loading Capacity: 320kg 480kg
Min. Lifting Height: 800mm
Max. Lifting Height: 12 meter (40 feet) scissor lift
Lift Drive / Actuation: Hydraulic electric
After-sales Service Provided: Field installation, commissioning and training
Platform: Anti-skid Checkered Plate
Voltage: 110V, 220V, 380V, customized
DFLIFT 12 meter scissor lift platform Product features:
DFLIFT 12 meter scissor lift platform, it has the function of automatic walking can under different working conditions, fast, slow walk, only one person can operate the machine when the work high above the continuous rise and fall, forward, backward, steering movements, such as more traditional hydraulic platform greatly improves the work efficiency, reduce the amount of operating personnel and labor intensity. Especially suitable for airport terminal building, station, wharf, shopping malls, sports venues, residential properties, factories and mining workshops, etc.
1. Stepless speed change
DFLIFT 12 meter scissor lift platform only needs one person to operate, all the movements are controlled by operating handle on the work table, the motor is stepless variable speed. Effectively prolong the service life of battery and motor, the motor only consumes energy when working.
2. Extend the platform
The platform can be moved out to expand the scope of work and meet the special needs of some users
3. Go green
Because the machine USES dc battery power, the machine can be safe and quiet for indoor or outdoor work.
12 meter (40 feet) scissor lift platform detailed parameters：
Tables
|
Description |
Unit |
Parameter value |
|
Overall length |
mm |
2485 |
|
Overall width |
mm |
1190 |
|
Overall Height(Guardrail folding) |
mm |
2600(2036) |
|
Wheel Base |
mm |
1877 |
|
Maximum Working Height |
m |
14m |
|
Maximum Platform Height |
m |
12m |
|
Maximum Load Capacity |
kg |
320 |
|
Extension Platform Load |
kg |
115 |
|
Platform Size |
mm |
2276×1120 |
|
Platform Extension Length |
mm |
900 |
|
Lifting Speed of Working Platform |
s |
60 |
|
Falling Speed of Working Platform |
s |
52 |
|
Total Weight |
kg |
3140 |
|
Travel Speed (High Speed) |
km/h |
3.2 |
|
Travel Speed (low Speed) |
Km/h |
0.8 |
|
Max. Travel Platform Height |
m |
11.8 |
|
Minimum Turning Radius |
m |
0 |
|
Minimum Ground Clearance (Pot Hole Protector Rises/Falls) |
mm |
100/20 |
|
Maximum Grade Ability |
% |
25 |
|
Tire Specification |
|
38.1cm×12.7cm |
|
Battery |
V/(Ah) |
4×12(300) |
|
Charger |
A |
30 |
|
Warning Angle of Inclination |
° |
1.5 |
|
° |
3 |
