1 ton(1000kg) scissor lift
Scissors lift platform which is the newly developed series by DFLIFT can provide customers with a variety of personalization options. The compact structure can be applied flexibly in a narrow space; with the new electric drive system, the driving is more smooth, without emissions more environmentally friendly; industry-leading automatic pothole protection system, safe and reliable; more extensible platform work space. DFLIFT scissors lift platform can be used in the truck series construction and maintenance of commercial buildings, warehouses, airports and other areas.

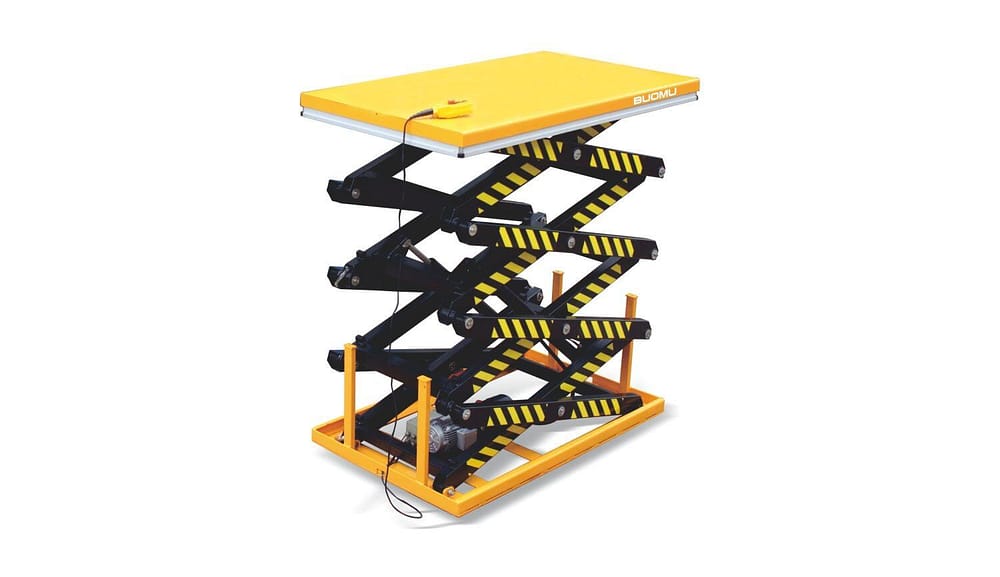

Stationary Scissor lift platform 1 ton:
Rated lifting weight: 100 kg-30 ton
Lifting height: 500 mm (0.5 m)-8000 mm (8 m)
Table size: customizable
Power supply: 110~550V three-phase
DFLIFT stationary scissor lift platform used high-strength steel frame structure and can load from 0.1T to 10T and the size and equipment size can be customized according to user needs. Scissor lift tables provide a level grade for loading and unloading any vehicle, irrespective of their bed heights. Also safe ground level access is provided with minimal loss of time and more efficient use of space. Concrete ramps take up valuable space, and can be come slippery and unsafe when wet.
DFLIFT scissor lift platform offer a simple push button operation to provide full control over all functions for easy and safe operation. The heavy- duty hydraulic lift cylinders enable a safe and efficient service of all vehicle bed heights. The high tensile structural scissor arms and rigid platform construction provide unit integrity and allow high capacities. Safety features include all-sided safety edges, dead man push button control, safety support legs, safety roller curtains, portal rails, etc
1ton scissor lift parameter table:
Tables
|
Model |
Lift height/m |
Lift capacity/kg |
Platform size/mm |
|
SJG2.5-3 |
3 |
2500 |
5200*2600 |
|
SJG2-6.5 |
6.5 |
2000 |
5200*2800 |
|
SJG2.5-3.5 |
3.5 |
2500 |
5200*2600 |
|
SJG2.5-5 |
5 |
2500 |
5600*3000 |
|
SJG3-2.5 |
2.5 |
3000 |
5000*2300 |
|
SJG3-3.5 |
3.5 |
3000 |
5600*2700 |
|
SJG5-10 |
10 |
5000 |
4500*2500 |
|
SJG8-2.5 |
8 |
2500 |
6500*4500 |
|
SJG12-3 |
12 |
3000 |
5500*2800 |
|
SJG15-4.5 |
15 |
4500 |
8000*2200 |
|
SJG20-5 |
20 |
5000 |
6000*3000 |
|
The hydraulic scissor car lift can be customized as your detailed size |
|||

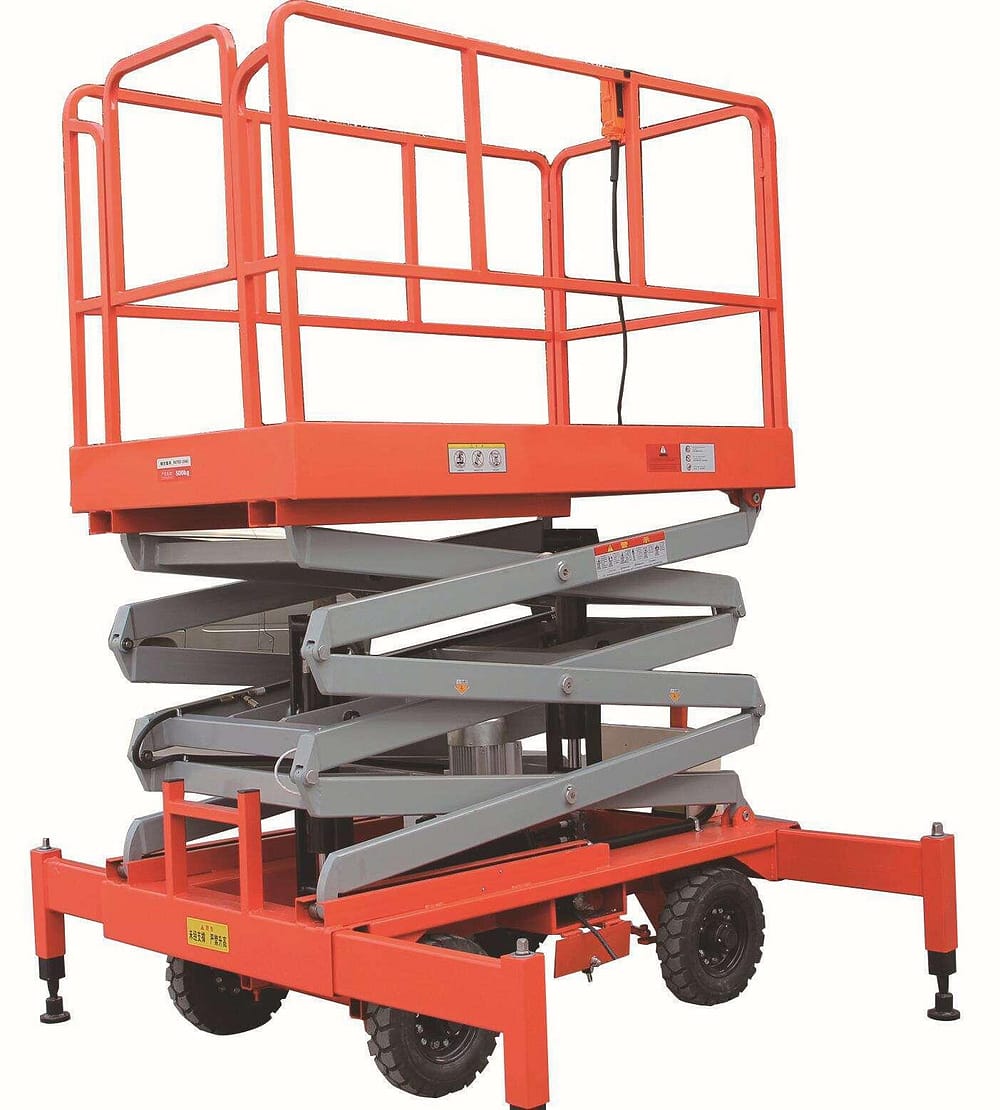

Movable electric hydraulic 1 ton scissor lift 1000kg platform:
Rated Loading Capacity：1ton
Max. Lifting Height: 6m
Voltage:220V/380V/battery/Fuel oil machine
Customizable area:Power/height/load/work station/color
Product Description:
1. Load weight: 300kg 500kg
2. lift height: 4m 6m 8m 10m 12m
3. Self moving, without outriggers.
4. One person can control the self propelled scissor lift up down stop and move
5. Automatic pothole protection system
6. Slide-out battery trays
7. All motion alarm
8. Roll-out extension platform
9. Grooves on underframe for easy transportation
10. LED battery condition indicator
11. Fault diagnostic system
12. Tilt level sensor
13. Manual platform lowering valve for emergency
14. Solid non-marking tires

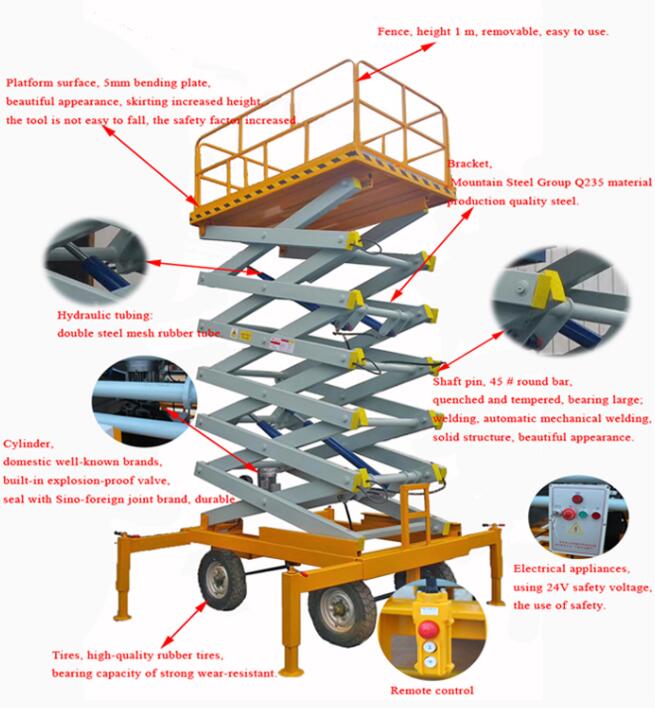

Movable electric hydraulic 1 ton details：
Movable scissor lift Product Size
Best Quality Scissor Aerial Work Platform One Man Lift Elevator Manual Mobile Scissor Lift Platform
Tables
|
Model |
Platform Dimension (mm) |
Load (Kg) |
Lifting height (m) |
Overall dimensions (mm) |
Overall weight (Kg) |
|
QYCY0.5-6 |
2100*830 |
500 |
6 |
2250*950*1200 |
880 |
|
QYCY0.5-7 |
2100*830 |
500 |
7 |
2250*950*1280 |
970 |
|
QYCY0.5-8 |
2100*930 |
500 |
8 |
2250*1060*1380 |
1050 |
|
QYCY0.5-9 |
2100*930 |
500 |
9 |
2250*1060*1500 |
1165 |
|
QYCY0.5-10 |
2100*1230 |
500 |
10 |
2250*1350*1530 |
1360 |
|
QYCY0.5-11 |
2100*1230 |
500 |
11 |
2250*1350*1650 |
1400 |
|
QYCY0.5-12 |
2550*1530 |
500 |
12 |
2796*1670*1750 |
2260 |
|
QYCY0.5-14 |
2812*1530 |
500 |
14 |
3067*1730*1810 |
2486 |
|
QYCY0.5-20 |
3500*1800 |
500 |
20 |
4000*2300*2400 |
5500 |
|
QYCY0.3-16 |
2812*1600 |
300 |
16 |
3067*1810*2080 |
3063 |
|
QYCY0.3-18 |
3070*1600 |
300 |
18 |
3321*1810*2080 |
3900 |
|
QYCY1.0-4 |
2100*1200 |
1000 |
4 |
2250*1350*1180 |
1250 |
|
QYCY1.0-6 |
2100*1200 |
1000 |
6 |
2250*1350*1300 |
1400 |
|
QYCY1.0-8 |
2100*1200 |
1000 |
8 |
2250*1350*1420 |
1585 |
|
QYCY1.0-10 |
2100*1200 |
1000 |
10 |
2250*1350*1530 |
1700 |
|
QYCY1.0-12 |
2550*1530 |
1000 |
12 |
2796*1670*1750 |
2560 |
|
QYCY1.0-14 |
2812*1600 |
1000 |
14 |
3067*1810*1900 |
3230 |
|
QYCY1.5-6 |
2100*1530 |
1500 |
6 |
2250*1750*1530 |
1780 |
|
QYCY1.5-8 |
2100*1530 |
1500 |
8 |
2250*1750*1690 |
2070 |
|
QYCY1.5-10 |
2100*1530 |
1500 |
10 |
2250*1750*1850 |
2250 |
|
QYCY1.5-12 |
2550*1530 |
1500 |
12 |
2796*1762*1850 |
2900 |
|
QYCY1.5-14 |
2816*1600 |
1500 |
14 |
3045*1852*1960 |
3400 |
|
QYCY2.0-6 |
2100*1530 |
2000 |
6 |
2250*1750*1530 |
1780 |
|
QYCY2.0-8 |
2100*1530 |
2000 |
8 |
2250*1750*1690 |
2070 |
|
QYCY2.0-10 |
2100*1530 |
2000 |
10 |
2250*1750*1850 |
2250 |
|
QYCY2.0-12 |
2550*1600 |
2000 |
12 |
2796*1852*1954 |
3200 |
|
QYCY2.0-14 |
2816*1600 |
2000 |
14 |
3067*1852*2230 |
3900 |

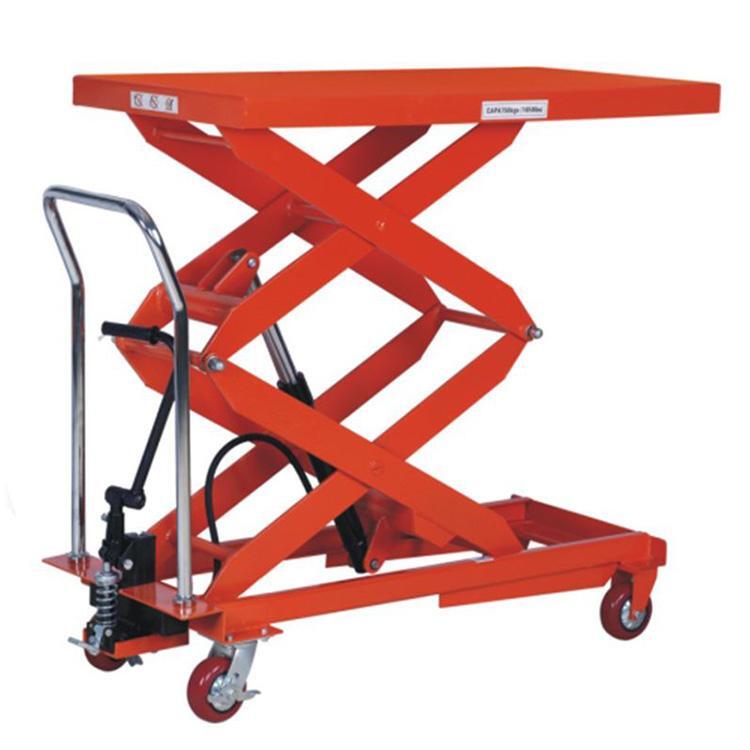

Manual Scissor Lift platform 1 ton:
Rated Loading Capacity：100kg -2000kg
Max. Lifting Height：3m
Power Source: Hydraulic AC pump/DF pump electro-hydraulic Manual liftingMin. Lifting Height: 415mm
Manual Scissor Lift platform 1 ton design:
Ideal for transporting loads to and from work units, Manual Scissor Lift platform 1 ton can be used as working platforms or to raise or lower the load in order to transfer the load to the table or bench.
Manual Scissor Lift platform 1 ton:
1) all-steel welded frame with powder coating on the surface to maximize durability and protection.
2) the foot pump is convenient, and the lifting is convenient.
3) overload protection ball valve to prevent the load from exceeding the maximum capacity. Use the brakes to control the casters.
4) Compact design flexibility and motion.
The ergonomically designed lifting / conveying device has a convenient hydraulic pedal pump, which can raise the forging die edge platform, reduce tension and fatigue, and is easy to operate for lifting, conveying, positioning, assembling, stacking and unstacking. The brake keeps the unit stable during loading and unloading, while the downcomer provides an accurate drop.
Table of parameters of 1-ton hand platform vehicle：
Tables
|
Item/Model |
SLC1000 |
|
Rated load |
1000kg |
|
The maximum height |
1000mm |
|
Minimum height |
430mm |
|
Lifting height |
670mm |
|
Table size |
1000x512x55mm |
|
Handle the height from the ground |
1010mm |
|
On foot to lift the heavy weight of the times |
≤40 |
|
Wheel diameter |
150mm |
|
Single pack size |
1130x610x460mm |
|
Gross weight |
132kg |
